Unparalleled Real-Time Edge Computing Prowess

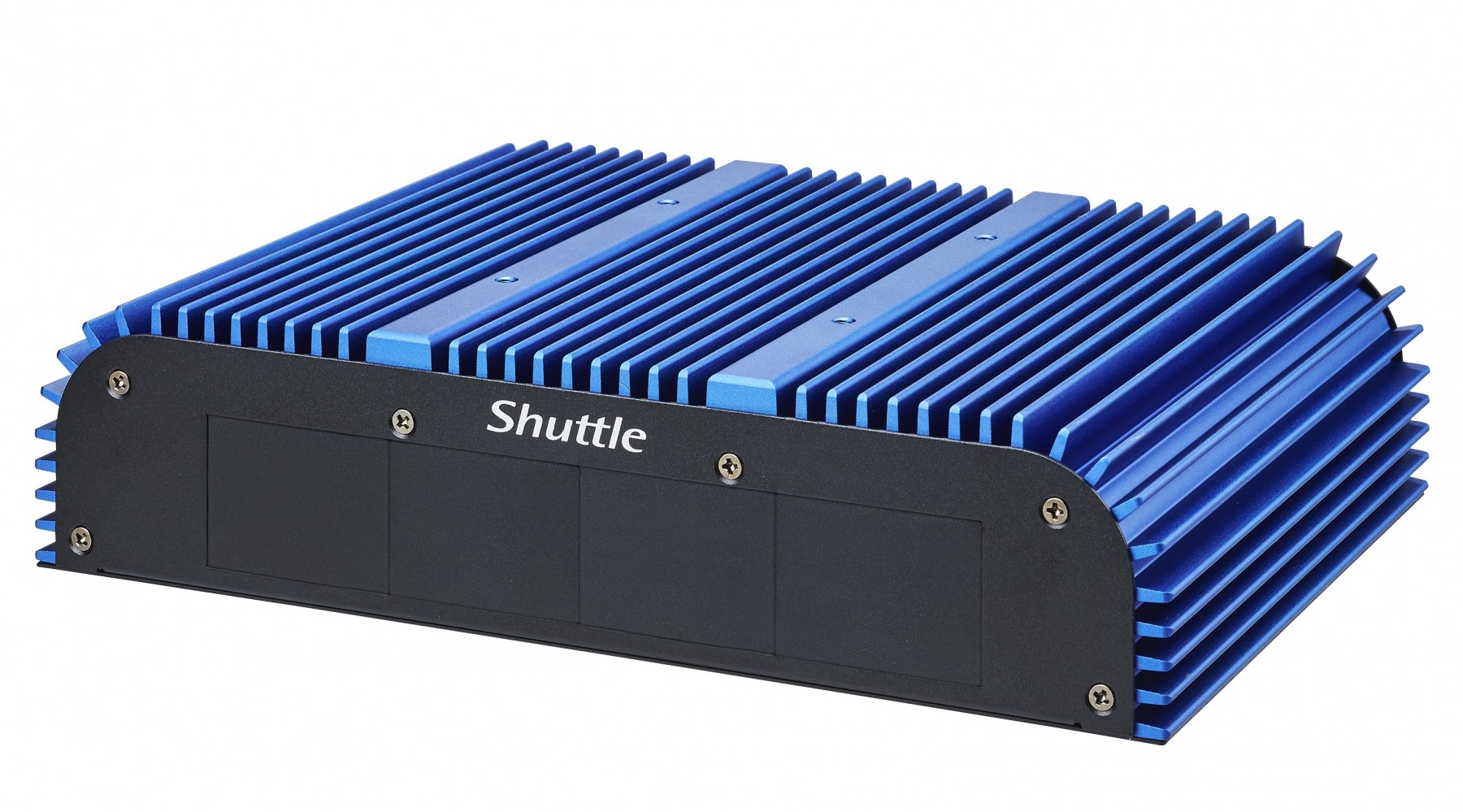

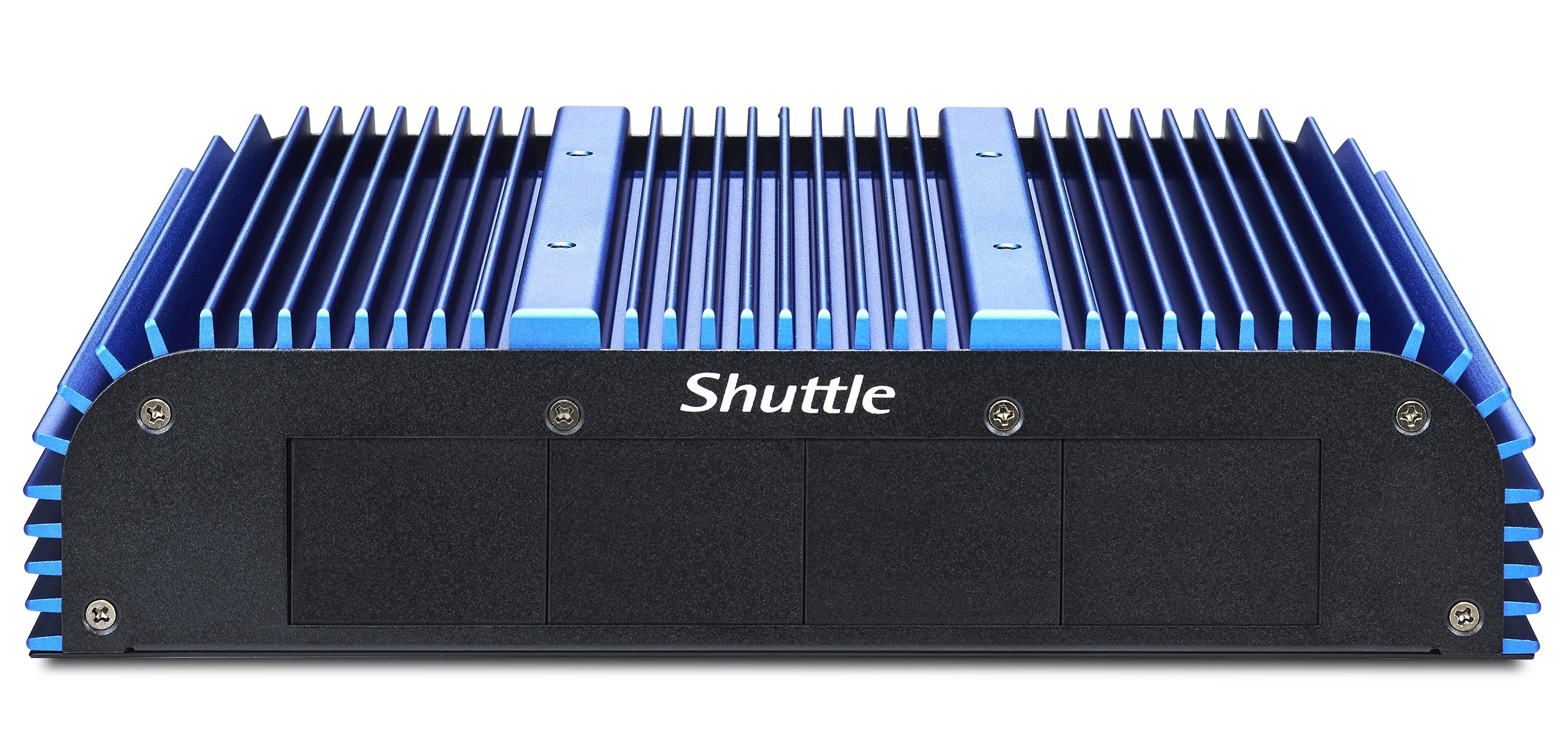

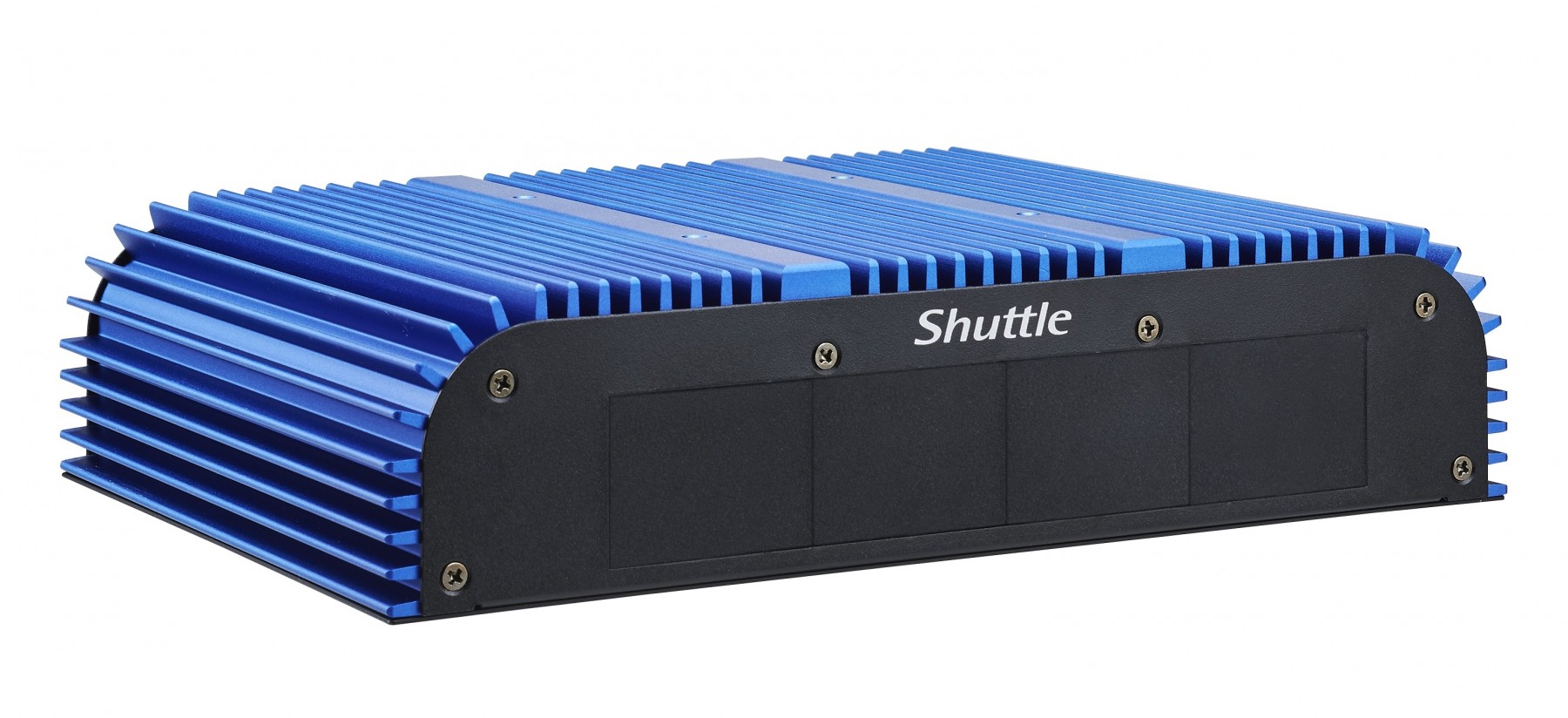

Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20°C to +60°C).12th Gen Intel® Alder Lake Core™ Processor
Intel Alder Lake platform is the optimal processor for IoT applications. It employs a 10nm process architecture with a hybrid design featuring P-cores for primary workloads and E-cores built for multitasking, meticulously optimized for intelligent tasks. As the latest generation, Alder Lake (P-core) offers a 28% performance improvement for users, along with an approximate 20% boost in IPC (Instructions Per Clock).
● Supports dual-channel DDR5-4800 MHz memory, Max. 64GB (2 x 32GB).
● Enables Intel® Iris® Xᵉ with dual-channel memory.Up to Quad Displays Capability
Quad display support enhances productivity, decision-making, and efficiency by providing additional screen space for various tasks. It is valuable in finance, data analysis, and graphic design, as well as in industries like surveillance and digital signage.
● Stunning 4K/Ultra HD visual (4K x 2K) provided via 1 x HDMI 2.0b (4096 x 2160@60Hz).
● Up to three customizable expansion DisplayPorts, including a maximum of two HDMI 2.0b outputs.

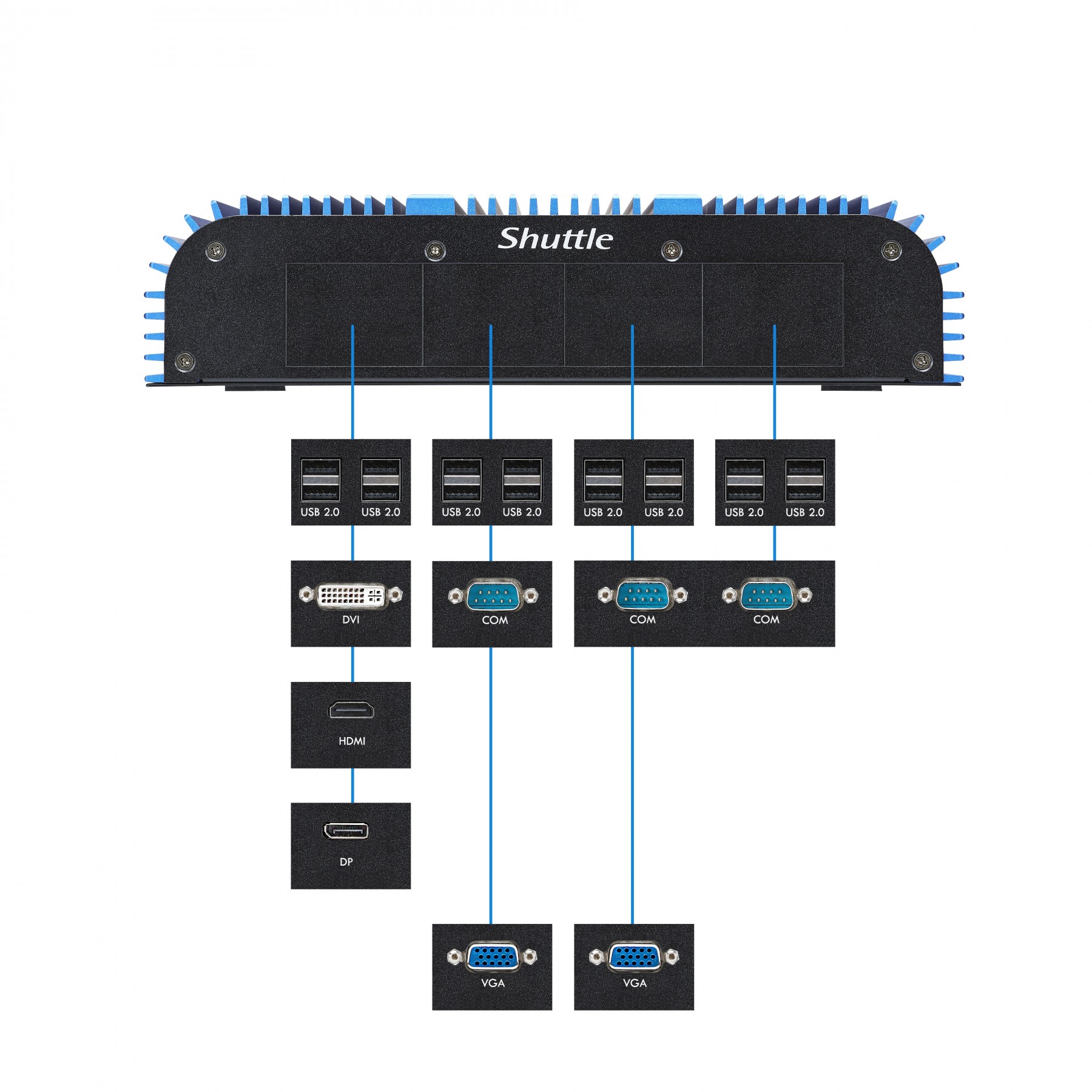

● Capable of supporting a total of four independent displays.I/O Customization with Modular Design

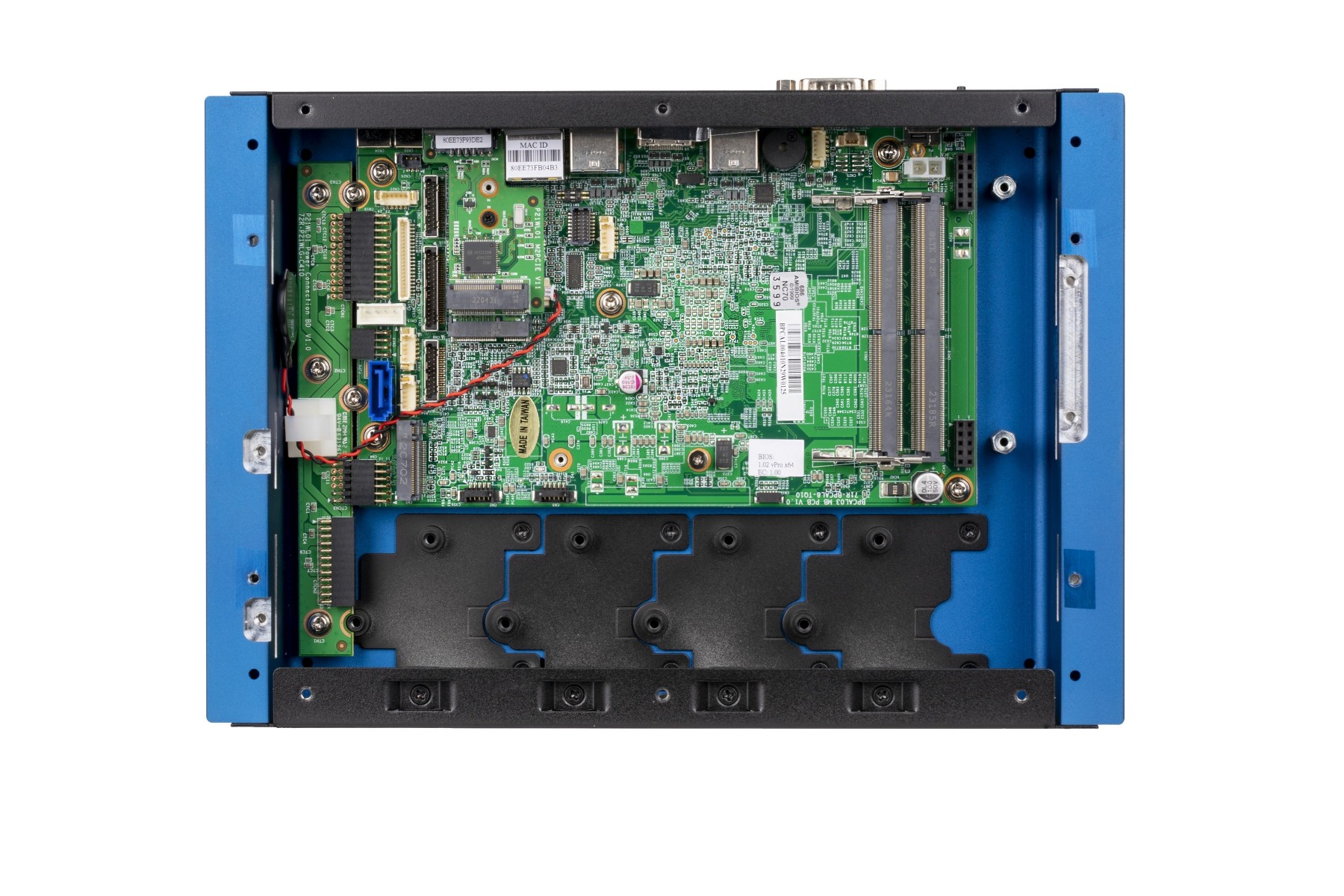

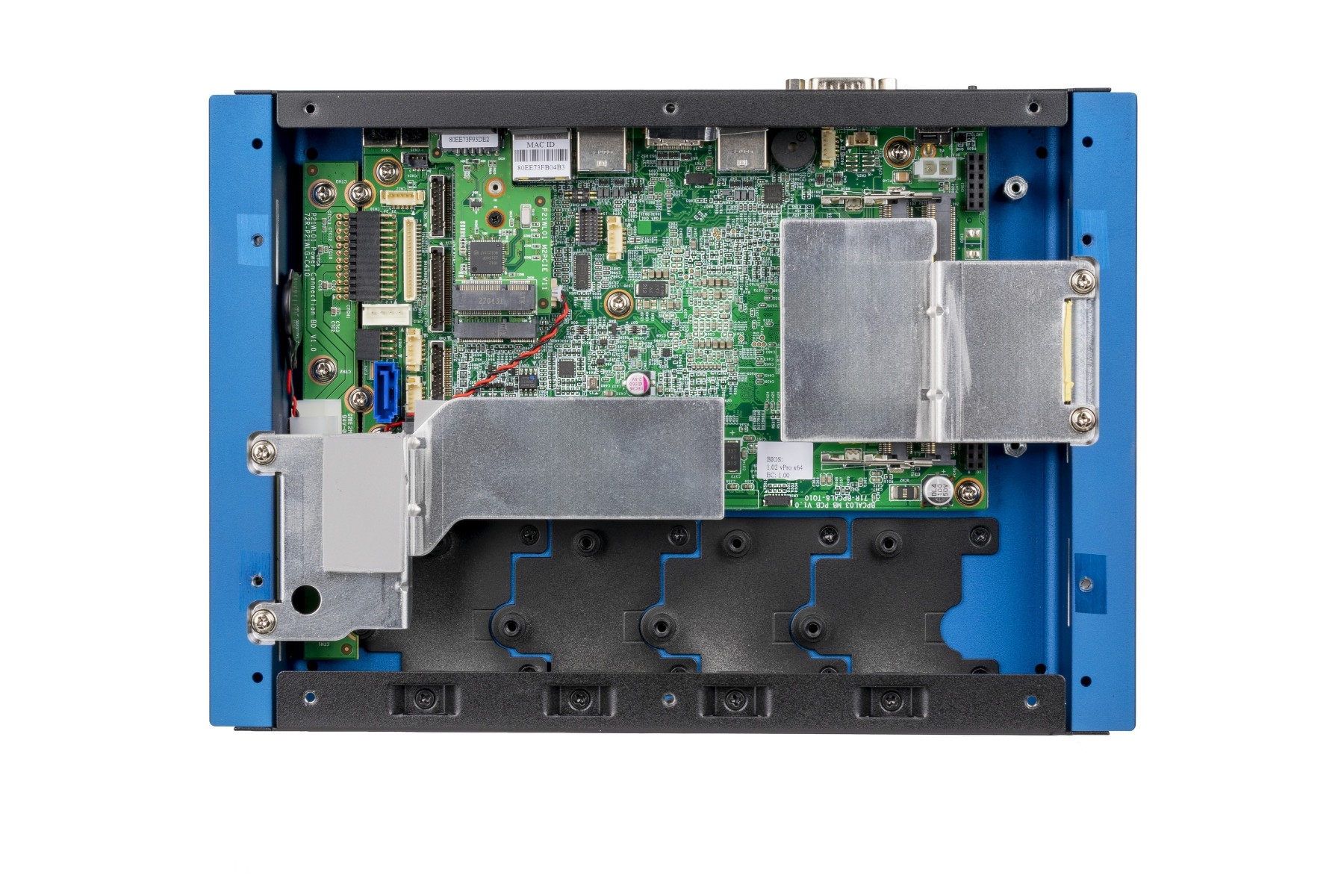

Built-in M.2 2280 Productivity
● Extend Storage - M.2 2280, M key slot:
Supports different sizes of 2242 for user's usage on M.2 NVMe/SATA SSD.
● Additional WLAN module - M.2 2230, E key slot:
Offers WLAN and Bluetooth functionality for creating a wireless environment.High-Speed Data Transmission

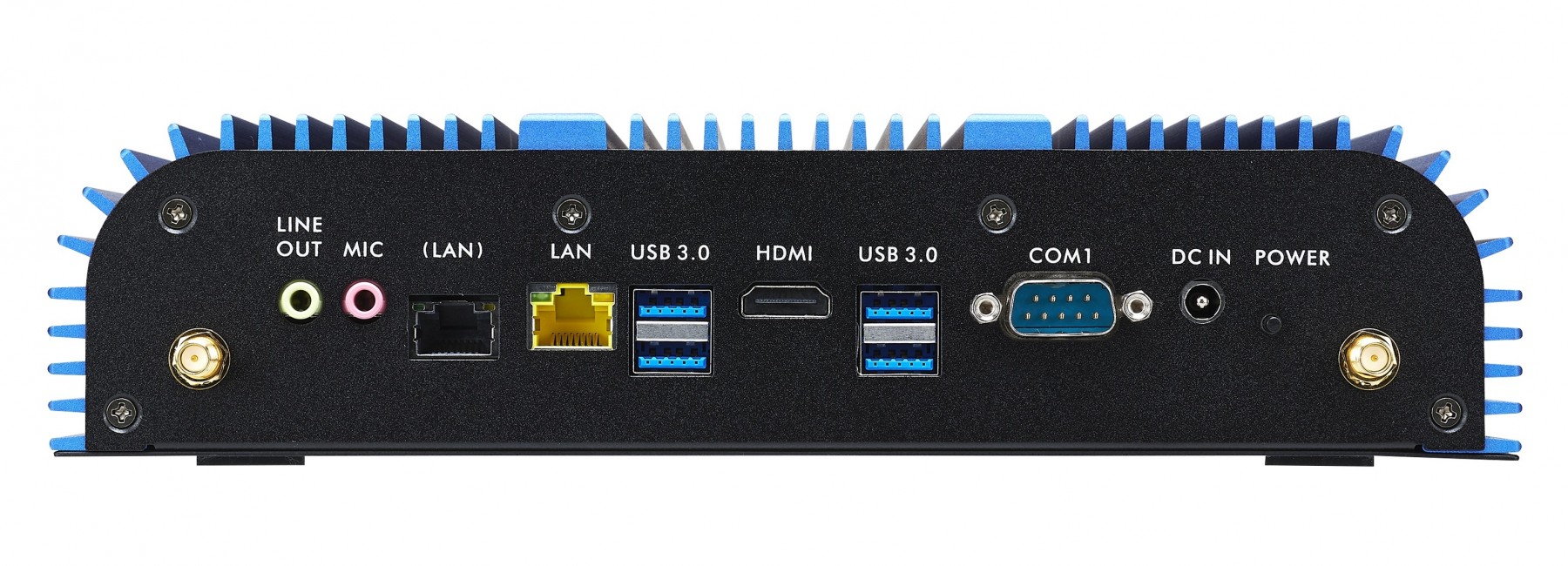

● USB Efficiency: 4 x USB 3.2 Gen 2
● Over 20 times faster than legacy USB 2.0Networking Capability
● Dual Intel® Gigabit LAN productivity
● Net speeds: Up to 2.5GbE
● Features BIOS Wake On LAN: Enables powering on BPCAL02/03 from S3/S4/S5 mode.
● WLAN via expansion M.2 2230 E keySupplementary Features
● BIOS and Utility: RTC Power on, Power On After Power Failure, Wake on LAN, Watchdog.
● Flexibility: Customization Modular Design with four sections.
● Reliability: Fanless, Exclusive Mechanical Design, Robust aluminum chassis
● Security: HW/TPM/fTPM Support
● Operating Temperature: BPCAL02 for 0~40 ⁰C, and BPCAL03 for -20~60°C environment.
● Mounting Methods: VESA Compatible, Din Rail.
● Supported Operating System: Windows 11 and Linux (64-bit).
- Spécifications
-
Spécifications
Taille écran - Alimentation - Dimensions - Chipset - Processeur - Mémoire - Baie de stockage - Lecteur Optique - Slot extension interne - Contrôleur de Stockage - Raid - Contrôleur graphique - Contrôleur réseau - Inteface PS2 - Ports externes - Audio - Connecteurs façade - Accessoires - Garantie Shuttle 3 ans retour atelier Format Nano - Commentaires
-
