Shuttle Edge-PC SPC2000B - PC industriel robuste, avec montage VESA/DIN-Rail

• Fanless and silent
  Completely fanless, virtually noiseless
  Large aluminium heatsink
  Passive cooling through convective heat transfer
  Ideal for noise-sensitive environments
  Fanless means less dust inside the case and thus virtually no maintenance required.
• 24/7 Nonstop Operation
  This device is approved for 24/7 permanent operation.
• Chassis
  Rugged cassis made of aluminium
  Colour: turquoise (blue-green)
  Dimensions: 120 x 75 x 51 mm (WxDxH) , 460 ml
  (Height: ca. 53 mm including rubber feet)
  Weight: 720/970 g net (without/with accessories) and 1.2 kg gross
• Operation Positions
  1) Mounted on a DIN-Rail, e.g. inside equipment racks
  2) Vertical, e.g. VESA-mounted behind an appropriate monitor (supports 50x50 and 100x100 mm VESA standard)
  3) Standing on its rubber feet like a desktop PC
• Operation System
  This system comes without operating system.
  It is compatible with:
  - Windows 10/11 (64-bit)
  - Linux (64-bit)
• Processor
  Intel® Celeron® Prozessor J6412, Quad Core
  CPU clock frequency: 2.0 GHz, max. Turbo frequency: 2.6 GHz
  Code name: "Elkhart Lake"
  10 nm process, FCBGA1493 package (soldered)
  CPU cores / Threads: 4 / 4
  L2 Cache: 1.5 MB
  Thermal Design Power (TDP): 10 W
  System-on-Chip processor (SoC) with integrated graphics processor, no additional chipset required
• Processor Cooling
  Fanless cooling system with passive heat sink, virtually noiseless
• Integrated Graphics
  The Graphics Processing Unit (GPU) is integrated in the processor.
  Intel® UHD Graphics (Intel Gen 10), graphics frequency: 400~800 MHz
  Execution Units (EU): 16, Shader: 128
  Max. Shared Memory (graphics memory): 8 GB
  Supports DirectX 12, Intel Quick Sync Video, Shared Memory
  Codec Support in Hardware: h265 (8-/10-bit), h264, VP8, VP9, AVC (only decoding: AV1, VC-1)
• UEFI Firmware
  16 MB Flash ROM with AMI UEFI BIOS Firmware
  Based on the Unified Extensible Firmware Interface (UEFI)
  Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
  Supports boot up from external flash memory cards (USB or SD card)
  Hardware TPM v2.0: Infineon SLB9670VQ2
• Memory Support
  1x SO-DIMM slots with 260 pins
  Supports DDR4-3200 (PC4-25600) SDRAM at 1.2V
  Supports one RAM module with max. 32 GB capacity
  Supports one unbuffered DIMM module (no ECC)
• M.2 expansion slot for SSD cards
  M.2-2242/2280 slot with SATA interface
  - supports SSD cards in M.2-2242 format (length: 42 mm)
  - only supports SSD cards in M.2-2280 format (length: 80 mm) if no WLAN card is installed
  - only upports SSD cards with SATA interface (not PCIe/NVMe)
• M.2 expansion slot for WLAN cards
  M.2-2230-E slot with these Interfaces: PCI-Express X2 and USB 2.0
  Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
  Supports WLAN expansion cards (optional Shuttle accessory: WLN-M3)
  Note: If a M.2 WLAN module is installed, then the M.2-SSD card is limited to M.2-2242 format with 42 mm length
  Note: Also supports an AI accelerator module for AI applications [3]
• Dual 2.5G LAN
  Dual network with two RJ45 ports with two status LEDs each
  Used network chips:
  2x Intel i226-V Ethernet Controller (PCIe)
  Supports 100 / 1.000 / 2.500 MBit/s operation
  Supports WAKE ON LAN (WOL)
  Supports network boot by Preboot eXecution Environment (PXE)

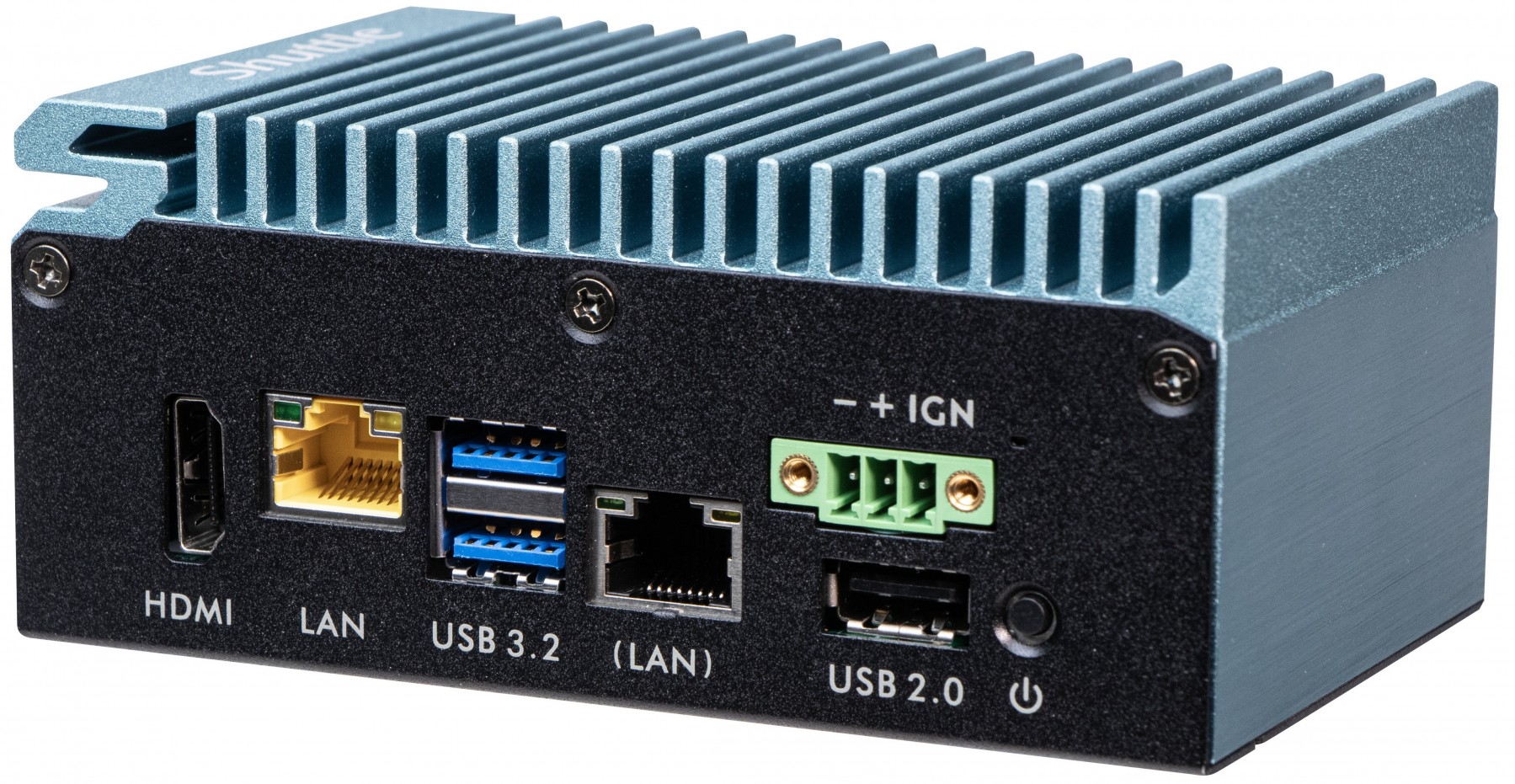

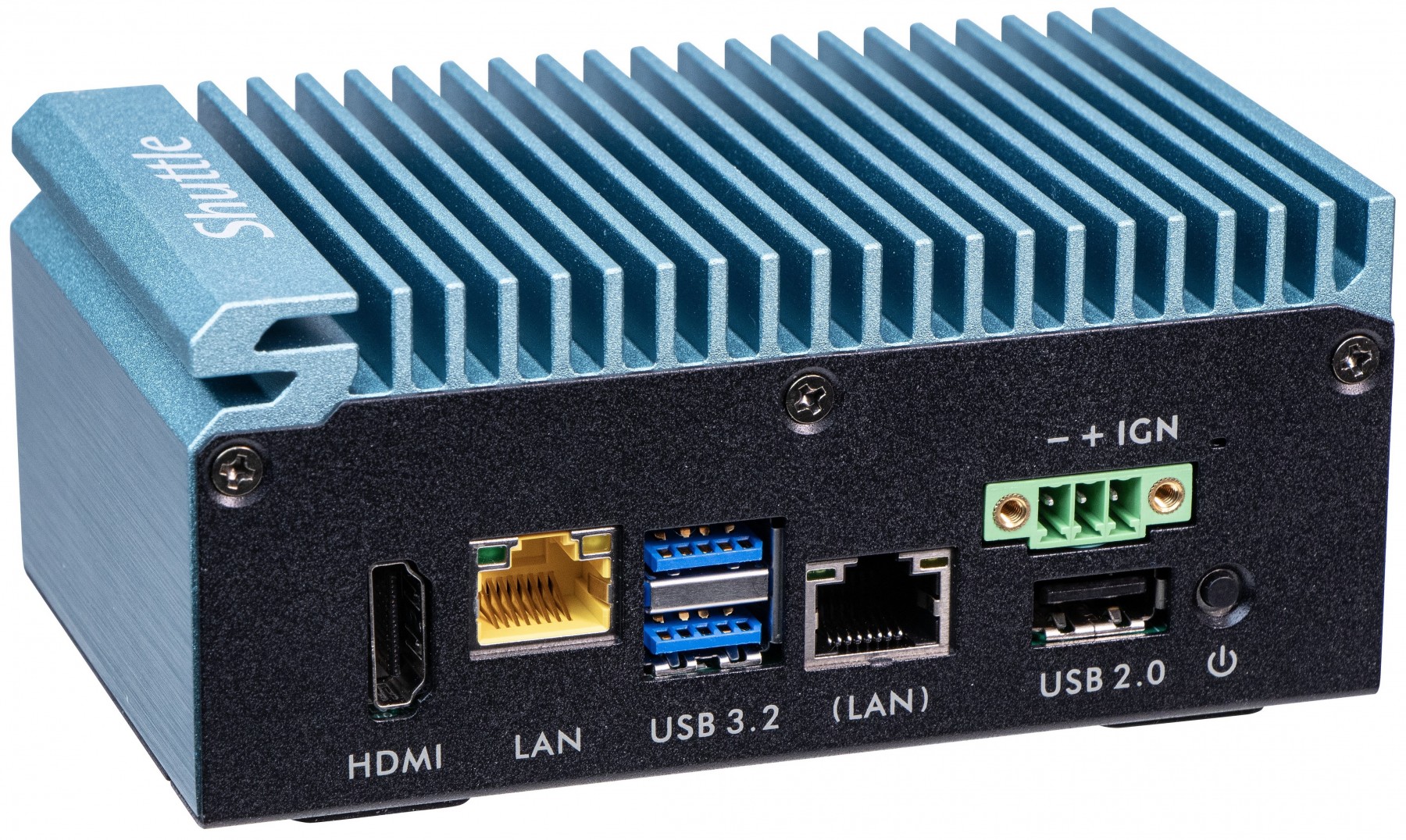

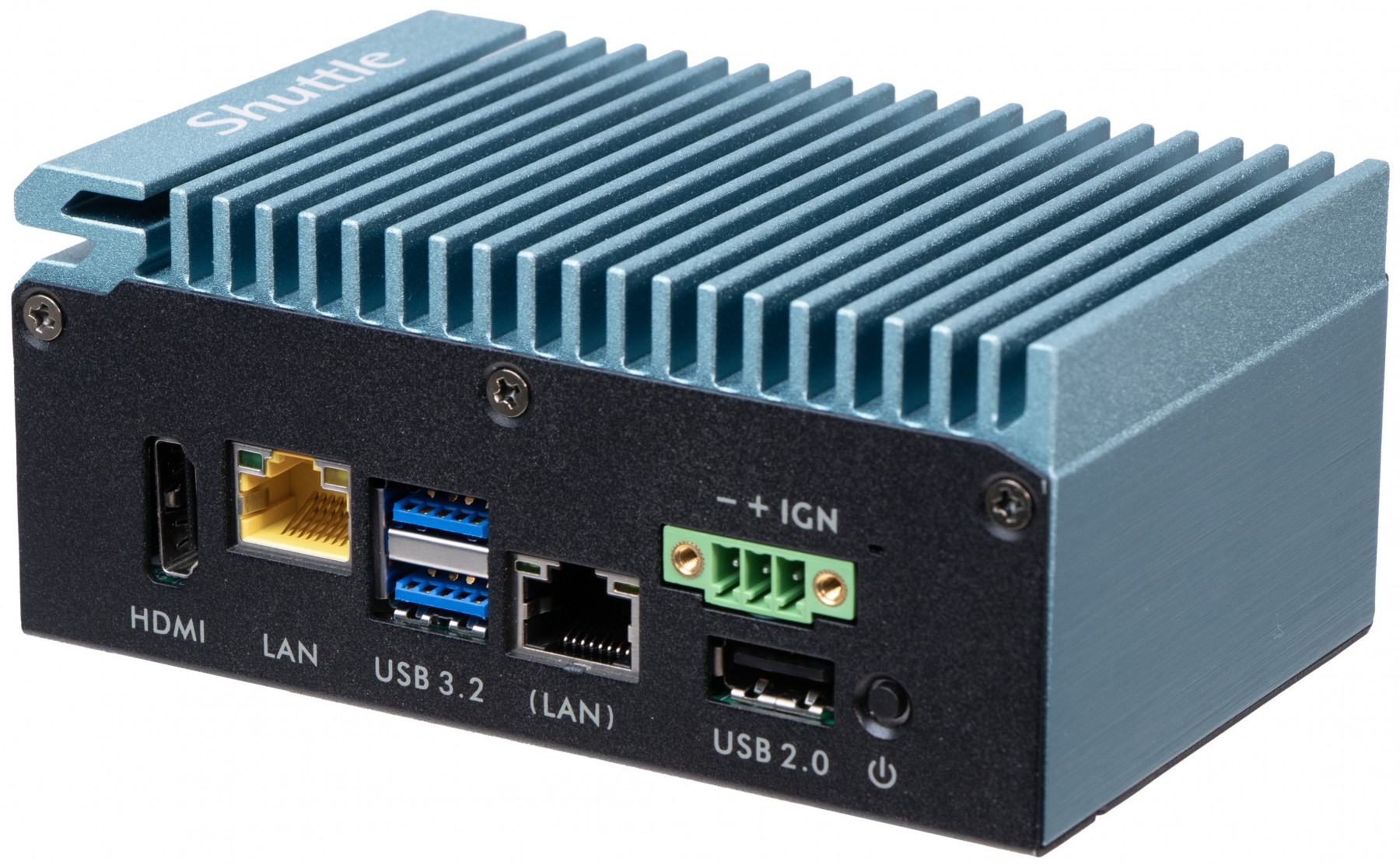

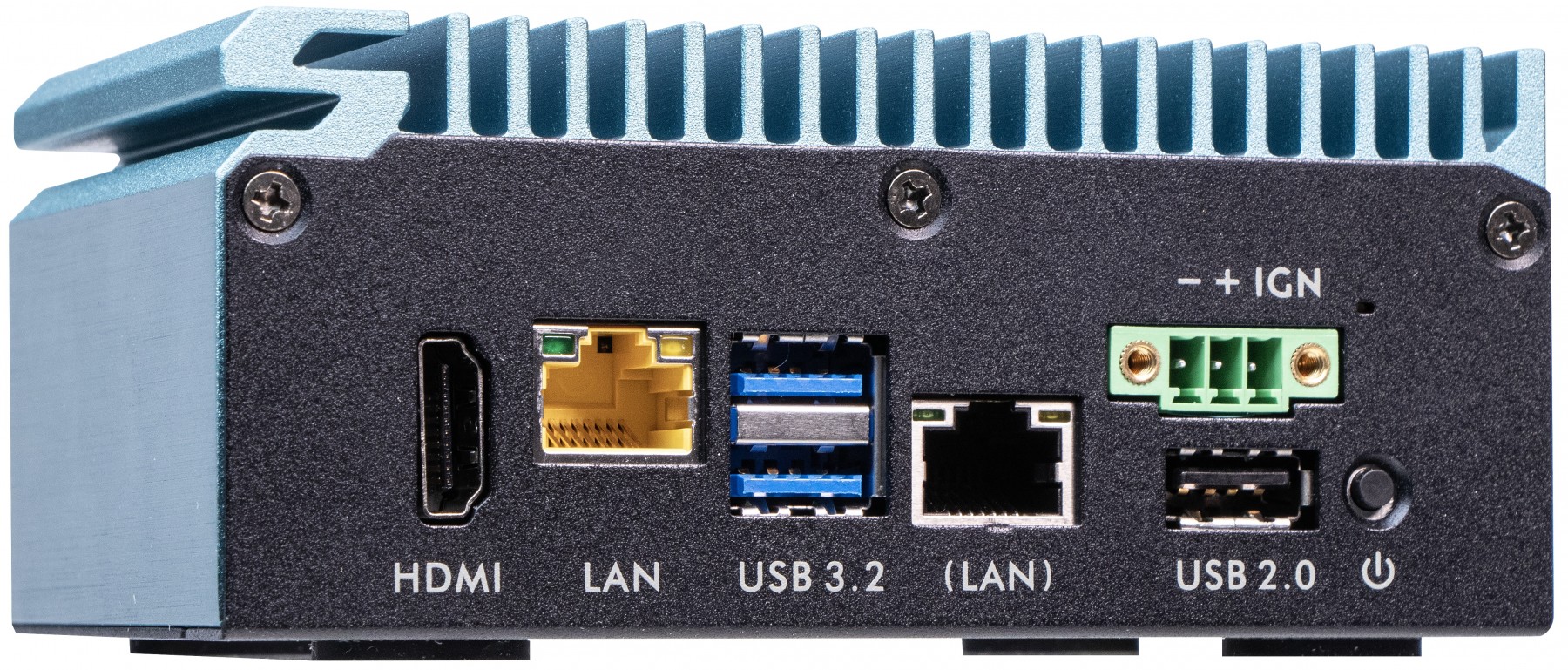

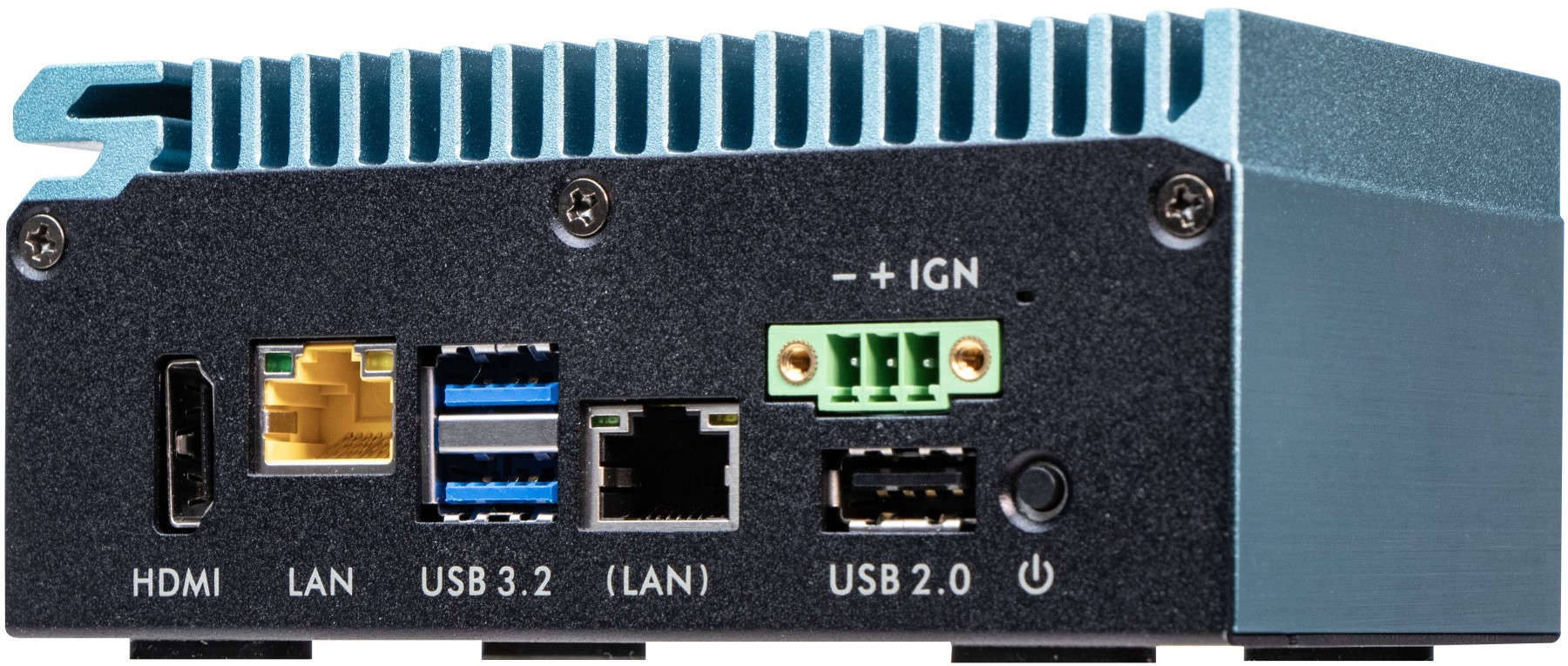

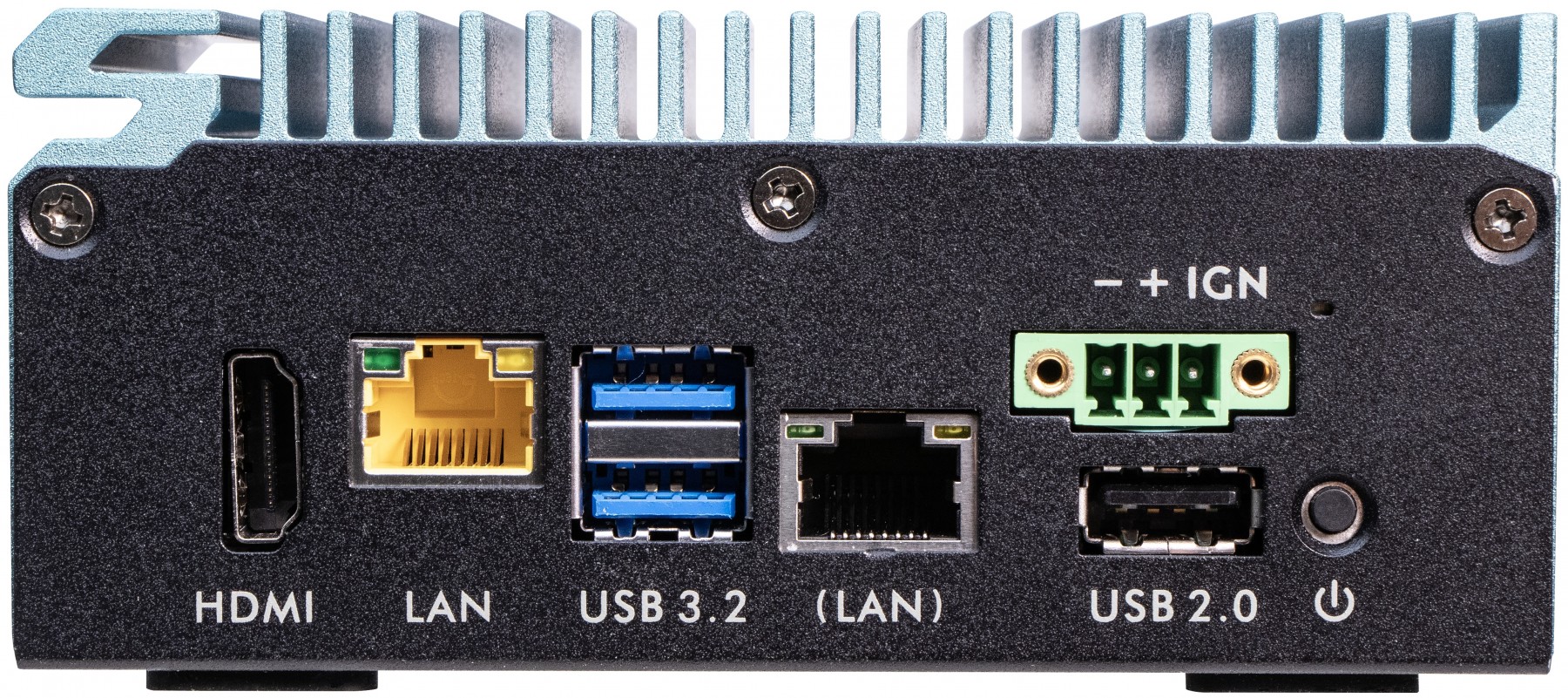

• Front Panel Connectors
  - Power Button
  - Power LED
  - HDMI 2.0b digital video and audio output
  - 2x USB 3.2 Gen 2 Type A (max. 10 Gbps)
  - USB 2.0 Type A
  - 2x 2.5G network port (LAN, RJ45)
  - DC input supports 12-24 V (3-pin Euroblock) [2]
• Back Panel Connectors

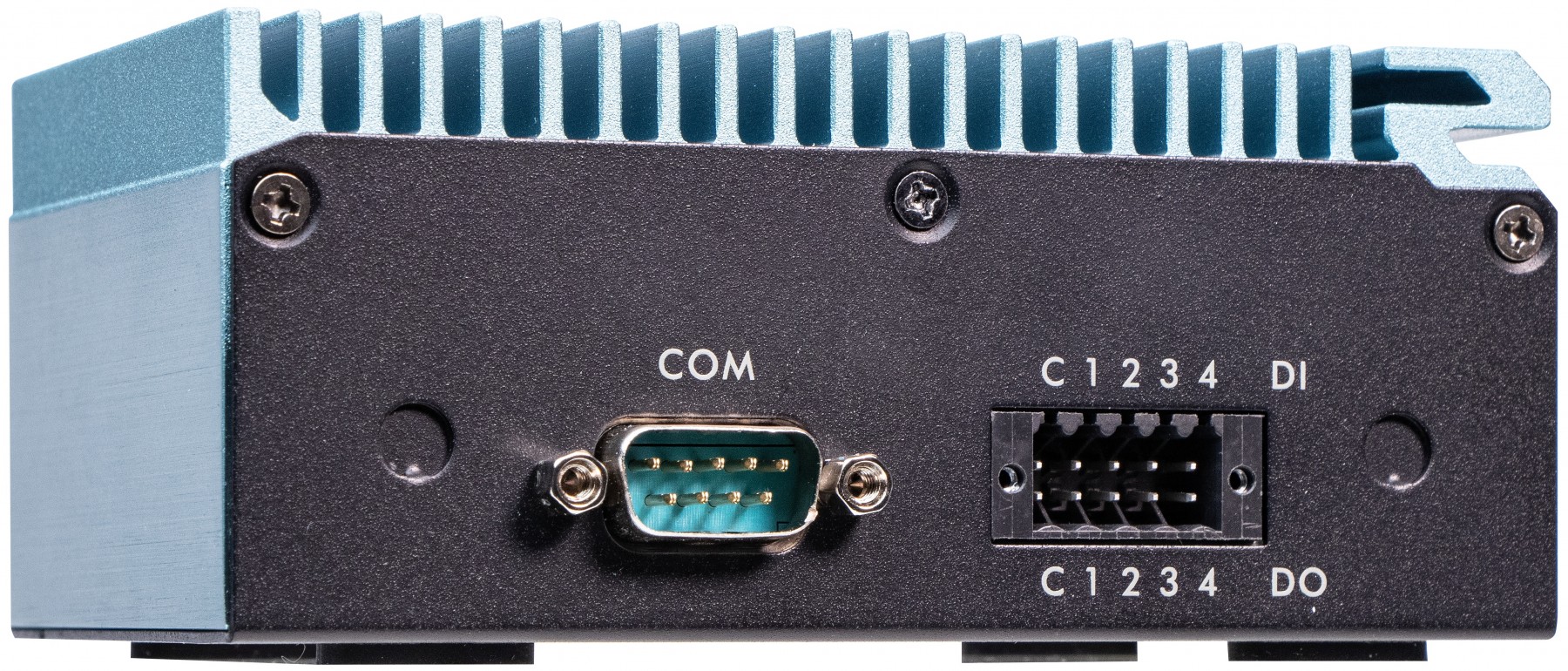

  - Serial Port supports RS232/422/485 (D-Sub)
  - Digital I/O ports (2x5-pin connector with 4 inputs and 4 outputs) [1]
  - 2x perforated 6.5 mm holes for optional WLAN antennas
• DC Input
  DC-Input connector (3-pin Euroblock) supports a wide voltage range: 12-24V DC.
  Required output wattage of the power source: ≥65 W
  The third pin "IGN" acts as input for the car ignition lock which enables delayed on/off switching of the Edge PC.
  The supplied adapter cable supports standard power adapters with 5.5 / 2.5 mm DC plug.
  A power adapter is not included in the scope of delivery.
  For further information see [2]
• Supplied Accessories
  - Multi-language user guide (EN, DE, FR, ES, JP, RU, SC, TC)
  - Driver DVD (Windows 11, 64-bit)
  - Bracket #1 supports 100 x 100 mm VESA mounting standard
  - Bracket #2 supports 50 x 50 mm VESA mounting standard
  - DIN-Rail Clip for 35-mm DIN-Rail mounting (in combination with bracket #2)
  - Seven screws M3 x 6 mm (5x black and 2x silver)
  - Two thermal pads for a single-side or double-side RAM module
  Note: additional thermal pads for SSD card and WLAN module are already installed
  - 3-pin Phoenix connector for the DC-input port
  - 2x5-pin connector/adapter for the DIO port
  - DC adapter cable (connects the Phoenix connector to a 2.5 / 5.5 mm coaxial DC plug of a power adapter)
  Note: A power adapter is not included in the scope of delivery.
• Optional Shuttle Accessories
  1) WLN-M3: WLAN kit including Wi-Fi 6 card (M.2-2230), 2x antenna cable (10 cm), 2x external antennas
  2) PE65 or PE90: Power Adapter with EU plug (65W / 90W)
  3) Coming soon: additional 2.5" bay for a hard disk or SSD with SATA interface
• Environmental Specifications
  Operating temperature range: 0 - 40 °C (32 - 104 °F)
  Relative humidity range: 20 - 80 % (non-condensing)
  Warning: Never touch the heatsink during or just after operation, as it can get very hot during normal operation. Be sure to wait for the heatsink to cool off before touching it.
• Certification and Compliance
  EMI: CE, FCC Class A, VCCI
  Safety: CB/IEC62368-1:2014/2018, cTUVus/UL62368-1:2019
  Other: RoHS, ErP, RoHS, EN 50155 OT1, EN 50121-3-2, MIL-STD-810G
  This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  (1) 2014/30/EU relating to electromagnetic compatibility (EMC)
  (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD)
  (3) 2009/125/EC relating to eco design requirements for energy-related products (ErP)

Footnotes:

[1] The Digital I/O connection (DIO) with 2x5 pins has 4 inputs and 4 outputs for digital signals in addition to the ground (C = Common).
Technical features
- Isolation Voltage: 2500 Vrms
4x Digital Outputs:
- Voltage Rating: 0...30 V (Open collector, pull-up)
- Output Current: max. 30 mA
4x Digital Inputs:
- Logical 0: 0-3 V or close to ground
- Logical 1: 5-30V or open
Instructions and test program with source code: https://go.shuttle.eu/HJbZW
Please contact Shuttle Support Hotline for further questions: support@shuttle.eu

[2] The DC input connector is designed as a 3-pin Euroblock with pluggable terminal block which uses screw terminals to clamp connecting wires (-/+) coming from the power source. The permissible input voltage range is 12-24 V and the power source should support an output wattage of at least 65 W. You can use the supplied adapter cable to connect a standard power adapter with a 2.5/5.5 mm DC-plug, such as the Shuttle accessory PE65 or PE90.
The third pin "IGN" acts as input for the car ignition lock which enables delayed on/off switching of the Edge PC.
The switch-on delay (0, 5, 10, 30, 60 sec.) and switch-off delay (0, 1, 3, 5, 10, 30, 60, 90, 120, 240, 360 min.) can be set in the BIOS setup under the “NVR Power Delay” menu item on the “Advanced” tab. You can enter the BIOS setup program by pressing the “Del” key shortly after switching on the PC.

[3] Supports AI accelerator module for AI applications
The M.2-2230 slot of this Edge PC can also be used with an AI accelerator module instead of a WLAN card. The following AI module was successfully tested:
Model: Hailo-8
- Form factor: M.2-2230 Key A+E
- Interface: PCIe Gen-3.0, 2 lanes
- AI compute power: 26 Tera-Operations Per Second (TOPS)
- Typical TDP: 2.5 W
https://hailo.ai/products/ai-accelerators/hailo-8-ai-accelerator/#hailo8-overview
