Shuttle Slim PC DL3000B - Fanless 1-litre PC suitable for 24/7 operation

• Fanless and silent
  Completely fanless, virtually noiseless
  Passive cooling through convective heat transfer
  Perfect to be used in noise-sensitive environments
  Fanless means less dust and thus virtually no maintenance required
• 24/7 Nonstop Operation
  This device is approved for 24/7 permanent operation.
  Requirements:
  - Free air circulation around the PC must be guaranteed.
  - Ventilation holes must be kept clear.
  - Any installed disk must also be approved for permanent
  operation by its manufacturer

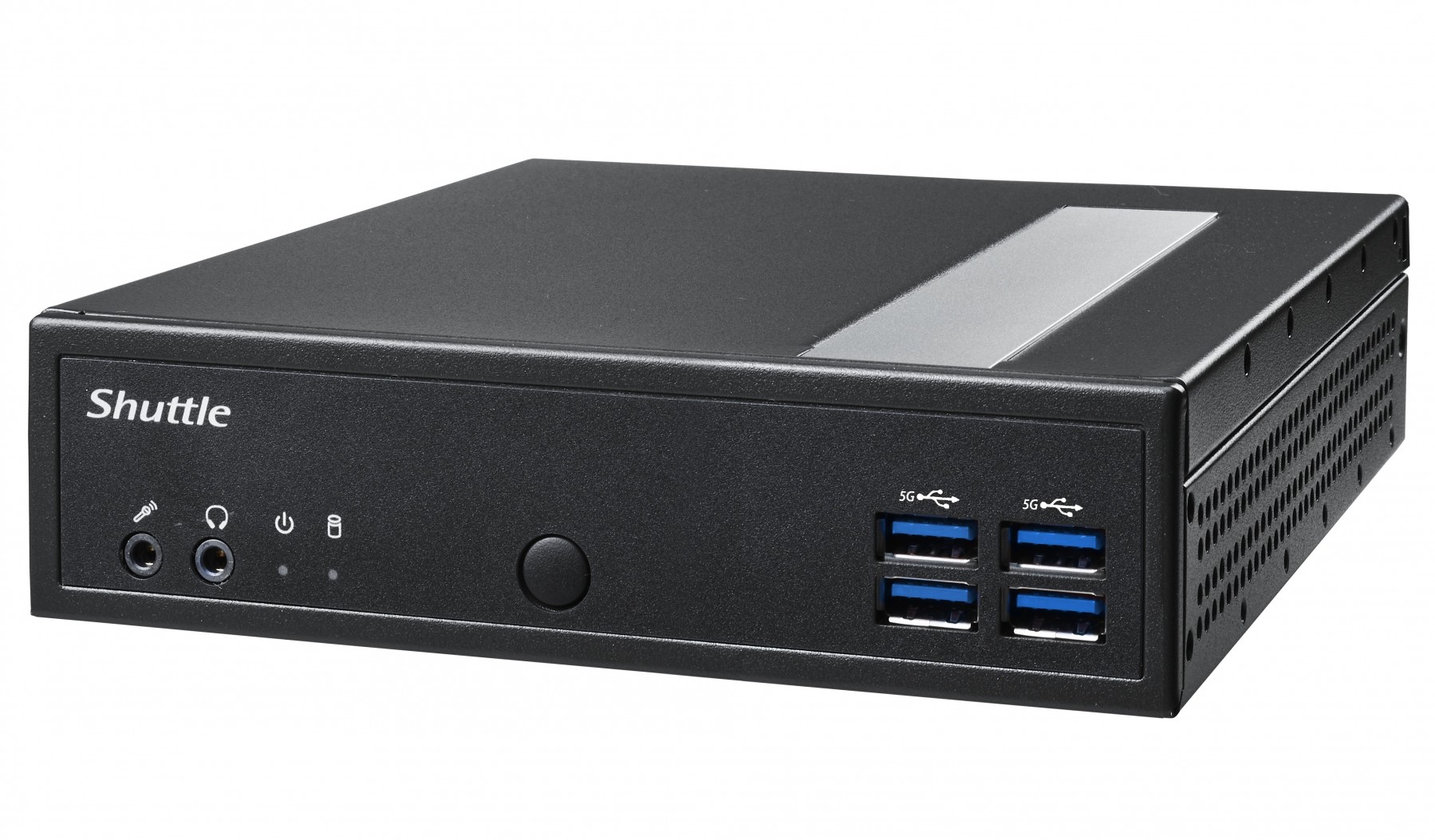

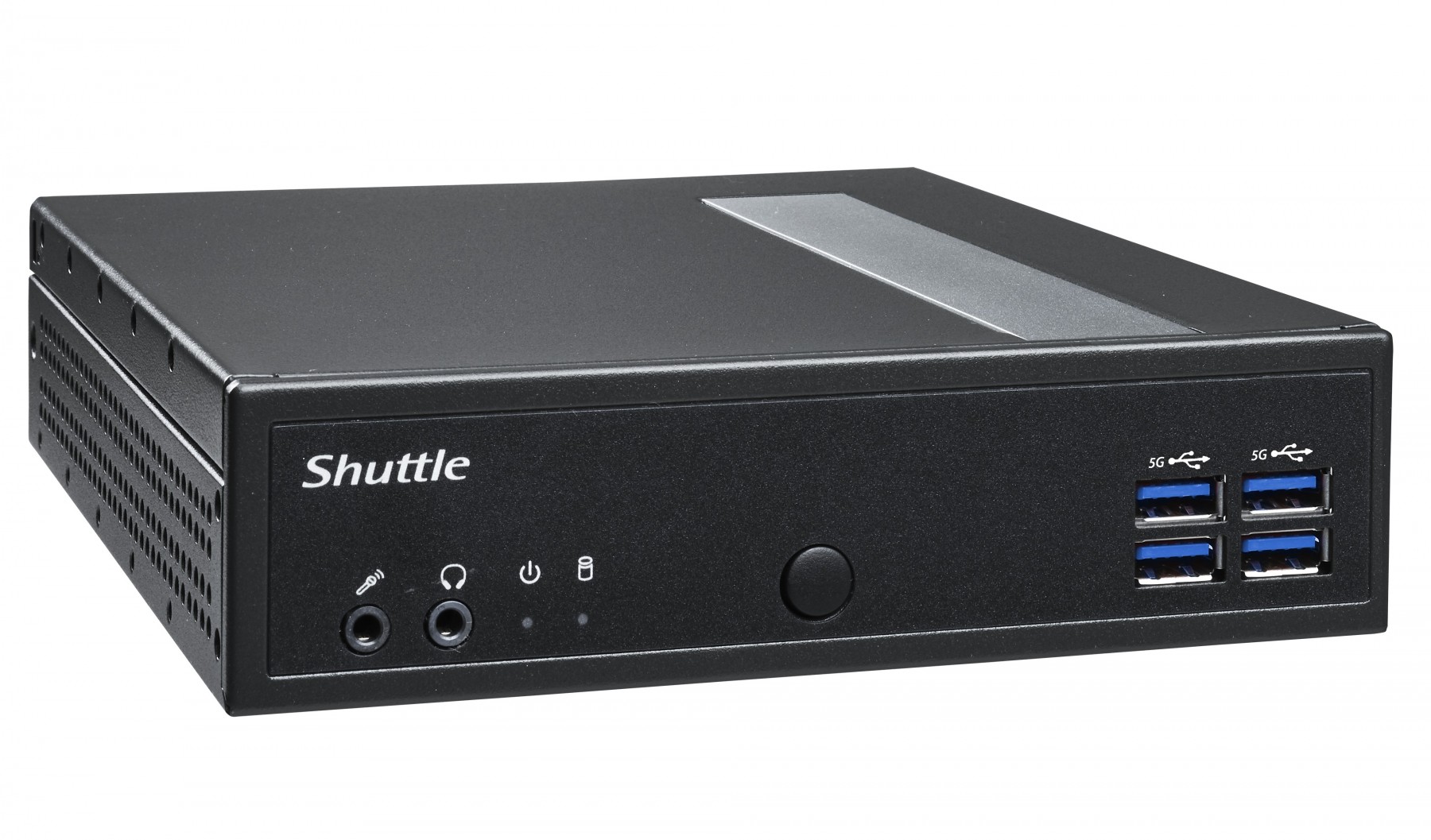

• Chassis
  Slim PC with black chassis made of steel
  Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre
  Weight: 0.8 kg net and 2.1 kg gross
  Two holes for Kensington Lock and numerous
  threaded holes (M3) at both sides of the chassis
• Operation Position
  1) Horizontal
  2) Vertical with mounted feet.
  These feet can be purchased as optional accessory PS02.
  3) Vertical (e.g. VESA-mounted behind an appropriate monitor)
  In vertical position, the front USB ports should point upward.
  Ventilation holes must not be blocked to ensure sufficient cooling.
• Operation System
  This system comes without operating system.
  It is compatible with
  - Windows 10, Windows 11 (64-bit)
  - Linux (64-bit)
• Processor
  Model: Intel® Prozessor N100
  Max. Turbo clock frequency: 3.4 GHz
  Code name: "Alder Lake-N"
  10 nm structure, FCBGA1338 package (soldered)
  CPU cores / Threads: 4 / 4
  L2 Cache: 6 MB
  Thermal Design Power (TDP): 6 W
  System-on-Chip processor (SoC) with integrated graphics processor, no chipset required
• Integrated Graphics
  The Graphics Processing Unit (GPU) is integrated in the processor
  Intel® UHD Graphics, GPU frequency: max. 750 MHz
  Supports DirectX 12.1, OpenGL 4.6, OpenCL 3.0, Intel Quick Sync Video
  Execution Units (EU): 24
  Triple Display Support via three video outputs:
  - HDMI 2.0b: max. 4096 x 2160 @ 60 Hz
  - DisplayPort 1.4a: max. 4096 x 2160 @ 60 Hz
  - D-Sub/VGA: max. 1920 x 1200 resolution @ 60 Hz
  Supports two digital displays and one analog display simultaneously.
  The D-Sub/VGA connector does not support the Hot Plug feature.
• UEFI Firmware
  32 MB Flash ROM with AMI's Aptio UEFI BIOS Firmware
  Based on the Unified Extensible Firmware Interface (UEFI)
  Supports Power-fail-resume / AC power-on state / always-on [3]
  Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
  Supports boot up from external flash memory cards
  With embedded Firmware TPM v2.0 (fTPM) [5]
  CMOS battery (type CR2032)
• Memory Support
  1x SO-DIMM slots with 262 pins
  Supports DDR5-4800 (PC5-38400U) SDRAM at 1.1V
  Supports one RAM module with max. 16 GB capacity
  Supports two unbuffered DIMM modules (no ECC)
• 2.5" Bay for Hard disk drive/SSD
  Supports one drive in 6.35 cm / 2.5" format (hard disk or SSD)
  Serial ATA III Interface with up to 600 MB/s transfer speed
  Max. height 9.5 mm
  Pre-installed SATA cable (data / power)
  Supports Unified Extensible Firmware Interface (UEFI)
• M.2 expansion slot for SSD card
  M.2-2280 M-key slot
  Interfaces: PCI-Express Gen. 3.0 X2 and SATA v3.0 (max. 6 Gbit/s)
  Supports M.2 cards with a width of 22 mm
  and a length of 42, 60 or 80 mm (type 2242, 2260, 2280)
  Supports SATA SSDs (BM-Key) or NVMe PCIe SSDs (M-Key)
• M.2-2230E slot for WLAN cards
  Interfaces: PCI-Express Gen. 3.0 X1 und USB 2.0
  Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
  Supports WLAN expansion cards (optional Shuttle accessory: WLN-M1)
• Integrated Audio
  Realtek ALC888S Audio Codec
  Two analog audio connectors (3.5 mm):
  1) Line out (head-phones)
  2) Microphone input
  Digital multi-channel audio output: via HDMI and DisplayPort
• Dual 2.5G LAN
  Two RJ45 connectors support LAN at 100/1000/2500 Mbit/s.
  2x Intel i226-LM Ethernet Controller
  Supports Wake-on-LAN
• LEDs and Buttons
  Power button
  Power LED (blue)
  HDD LED (yellow)

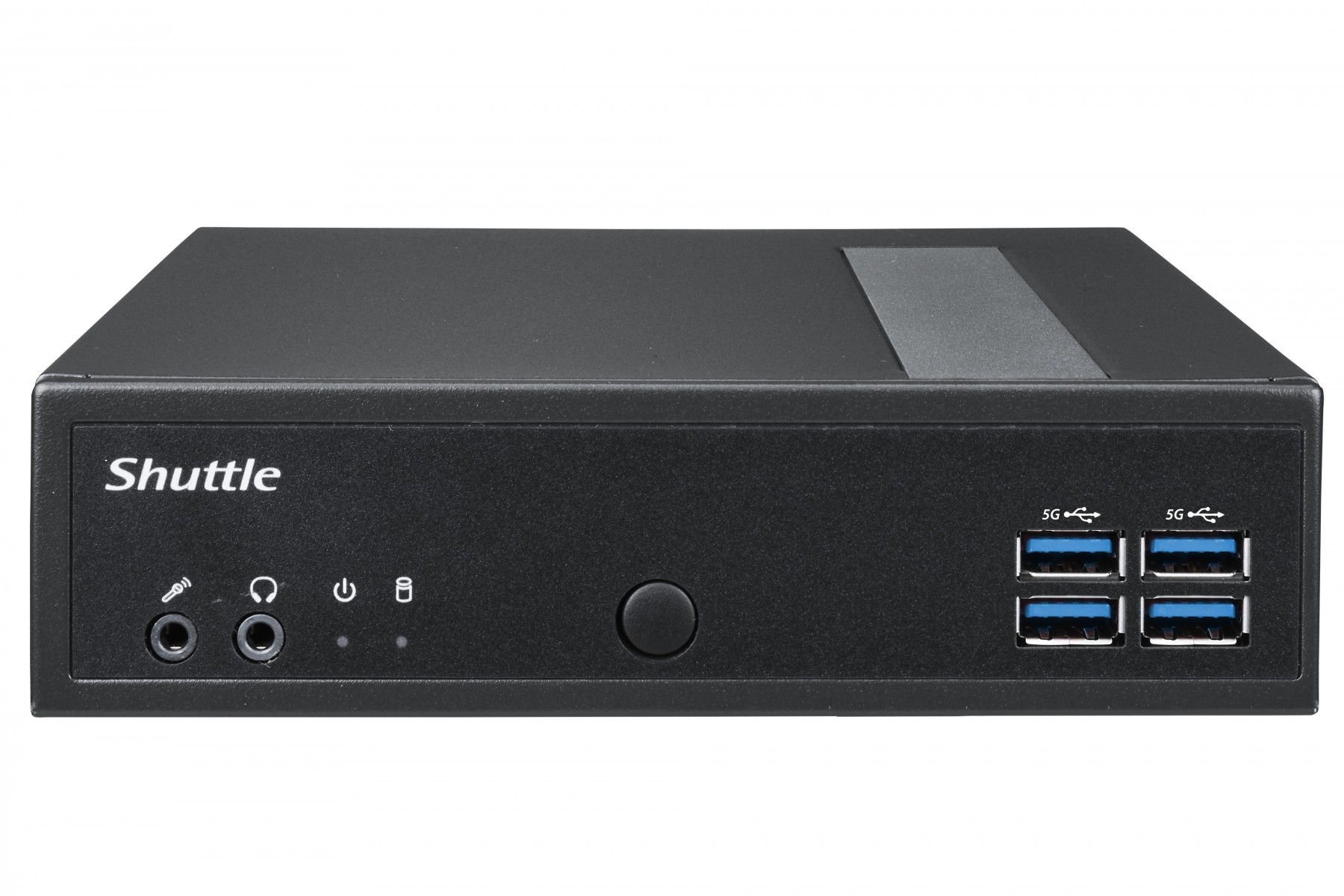

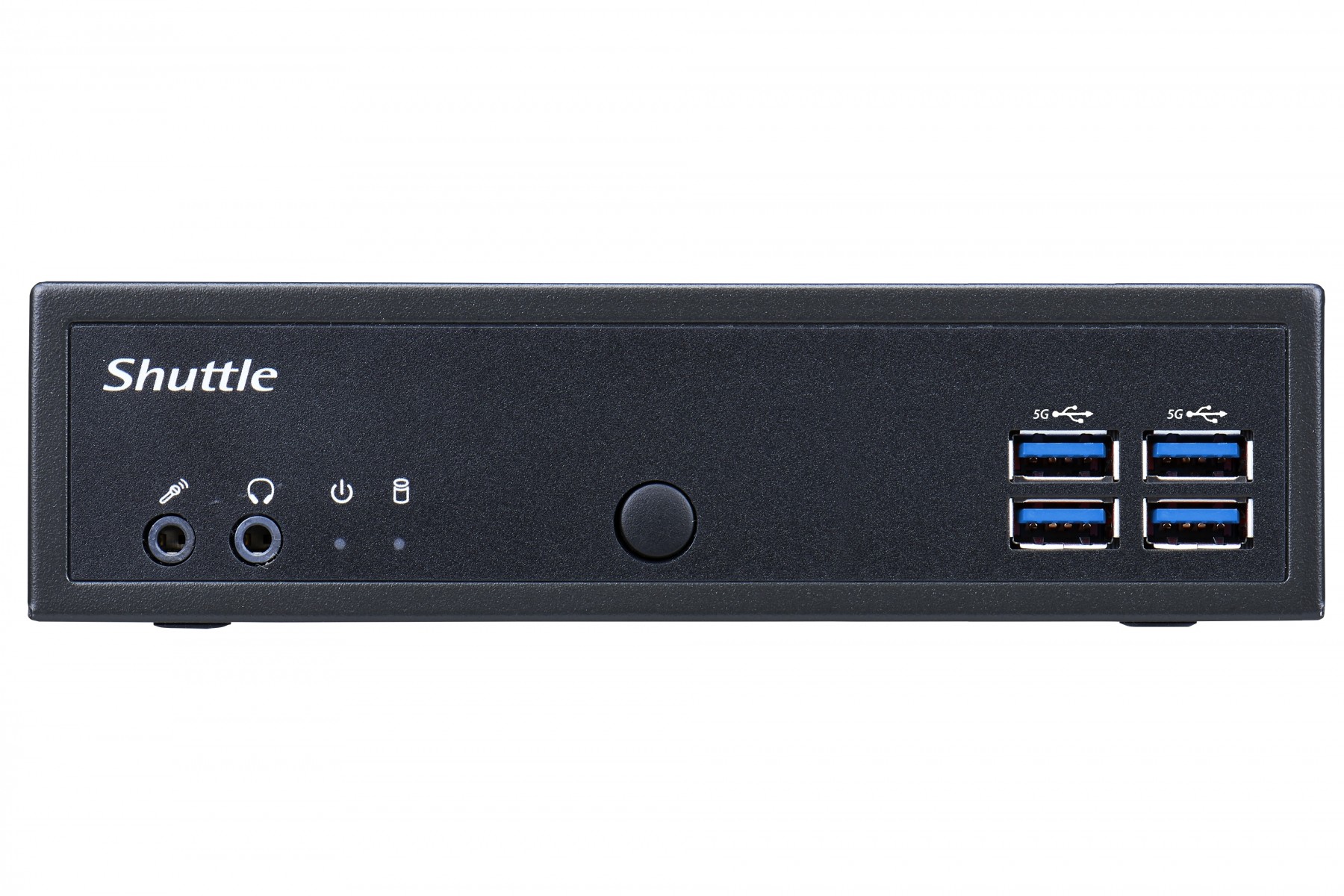

• Front Panel Connectors
  4x USB 3.2 Gen 1 Type A (blau, max. 5 Gbps)
  Audio 3.5 mm line-out (headphones)
  Microphone 3.5 mm input

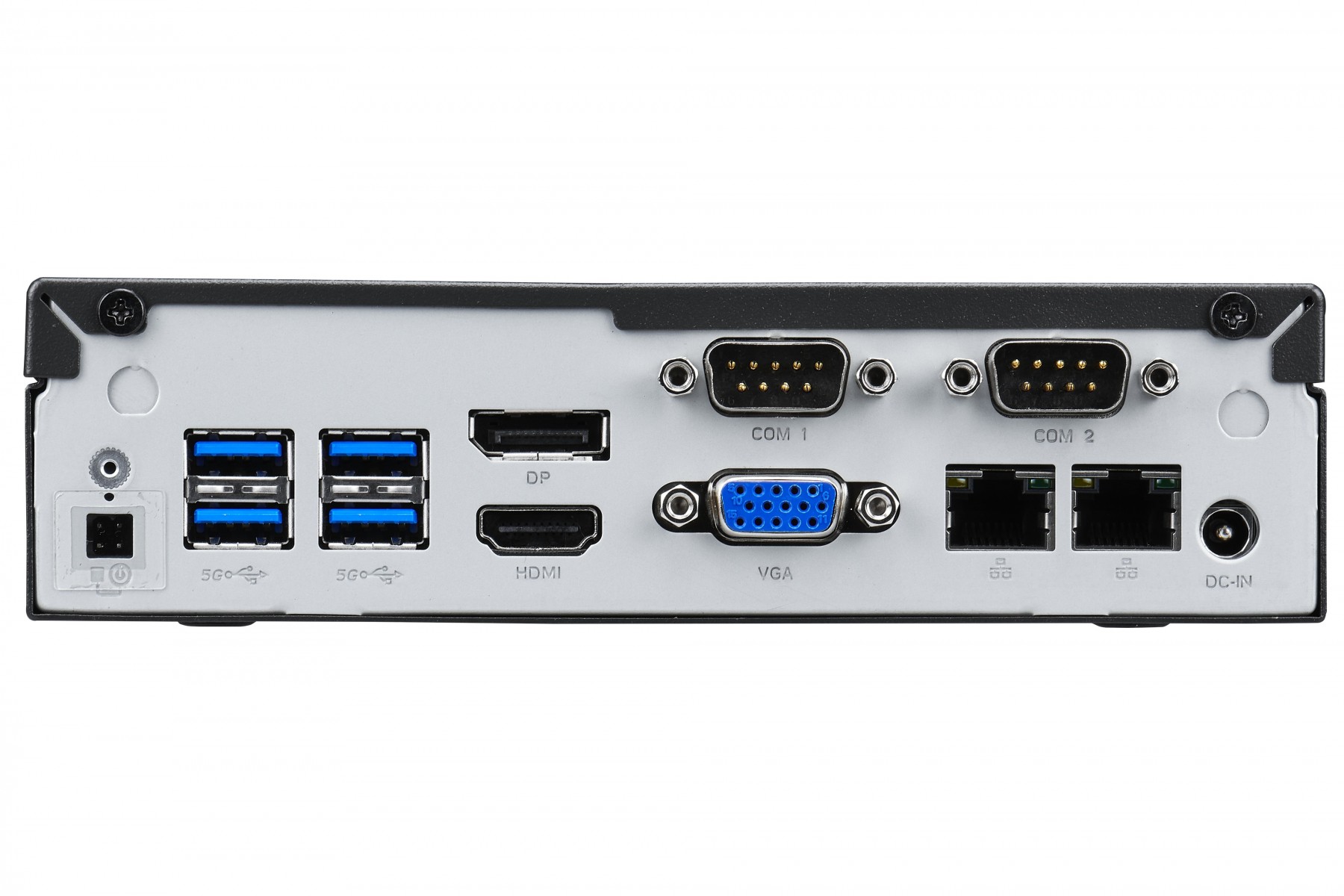

• Back Panel Connectors
  HDMI 2.0b digital video and audio output
  DisplayPort 1.4a digital video and audio output
  D-Sub/ VGA analog video output (15-pin) - no hot plug
  4x USB 3.2 Gen 1 Type A (blue, max. 5 Gbps)
  2x LAN port 2.5 Gbps (Intel i226-LM, RJ45)
  2x RS232 serial port, 9-pin D-Sub (support of an auxiliary voltage of 5/12 V,
  the left port is switchable to RS422 / RS485) [4]
  DC input for the external power adapter (supports 12V and 19V)
  4-pin connector (2.54 mm pitch) supports
  - external power-on button
  - Clear CMOS function
  - +5V DC voltage for external components
  2x perforation for optional Wireless LAN antennas
• Other Onboard Connectors
  Connectors COM1/COM2 for serial ports (occupied)
  Jumper JP1 for power-on-after-power-fail (hardware solution) [3]
  USB 2.0 header CN1 (4-pin) required for WWN03 accessory
• Power Supply
  External 65 W AC/DC power adapter (fanless)
  AC Input: 100 ~ 240 V AC, 50 ~ 60 Hz, max. 1.6 A
  DC Output: 19 V, max. 3.42 A, max. 65 W
  Automatic AC voltage adjust
  DC cable length: ca. 180 cm
  AC cable length: ca. 180 cm (3-pin Micky MM C6 and Schuko earthed safety plug)
• DC Input connector
  DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
  The DC-input of the computer supports an external power source
  with either 12 V ±5% (max. 5.33 A) or 19 V ±5% (max. 3.42 A).
• Supplied Accessories
  Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
  VESA mount for 75 / 100 mm standard (two metal brackets)
  Four screws M3 x 5 mm (screws together VESA mount and PC)
  Four screws M4 x 10 mm (to affix VESA mount on the PC)
  Four screws M3 x 4 mm (to mount a 2.5" storage into the bay)
  Two screws M2 (to mount some M.2 cards)
  Driver DVD (Windows 64-bit)
  External 65 W power adapter with power cord (with protective-earth contacts)
• Optional Accessories:
  - PS02: optional stand for vertical operation
  - CXP01: adapter cable for external power button
  - PRM01: 2U rack-mount front plate for two Shuttle XPC slim PCs
  - DIR01: DIN-Rail mounting kit
  - WLN-M1: WLAN module in M.2 format supports Wi-Fi 6 (IEEE 802.11ax) and Bluetooth 5.2 including two external antennas and cables
  - WWN03: LTE kit with adapter card, 2 antennas and antenna cables. Supports one M.2 LTE module and one nano SIM card [1]
• Environmental Specifications
  Operating temperature range: 0 ~ 40 °C
  Relative humidity range: 10 ~ 90 % (non-condensing)
• Certification and Compliance
  EMI: CE, UKCA, FCC, RCM, VCCI, BSMI
  Safety: CB IEC 60950-1/62368-1, cTUVus (UL 62368-1), BSMI
  Other: RoHS, Energy Star, ErP
  This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  (1) 2004/108/EC relating to electromagnetic compatibility (EMC),
  (2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  (3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)

[1] Optional LTE support
Shuttle provides the optional "Shuttle Accessory WWN03" which consists of an adapter card, two antennas plus 20 cm antenna cables. The WWN03 adapter card occupies the 2.5" drive bay, so that no more 2.5" SATA device can be installed. The 3G/LTE card must have M.2-3042 Key B format with MHF IV (I-PEX4) connectors for the antenna. In addition, it supports one Nano-SIM card (Mini and Micro format is not supported). The required 3G/LTE card and SIM card are not included in WWN03.
[2] How to convert DisplayPort into HDMI/DVI
The DisplayPort output can be converted to HDMI or DVI by an additional, passive adapter cable. For example:
DELOCK 82590: 1 m, DisplayPort (male, 20p) to HDMI-A (male, 19p)
DELOCK 82435: 5 m, DisplayPort (male, 20p) to DVI-D (male, 24p)
The integrated graphics automatically detects the connected display and puts out the appropriate electric signal - either through DisplayPort (without an adapter) or HDMI/DVI (with an adapter).
However, a monitor with a DisplayPort connector cannot be connected to the HDMI port with a simple, passive adapter.
[3] Power-on-after-power-fail
The BIOS setup provides a "Power-on-after-power-fail" function that can be found under "Power Management Configuration". As the name indicates, this function determines the PC's behaviour after power failure: (1) unconditional power-on, (2) restore former status or (3) keep system turned off. As a matter of the nature of this function, it may fail after short power failures. This is why this PC also comes with a hardware-based solution. By removing Jumper JP1 (on the mainboard behind the D-Sub/VGA port) the system will start unconditionally once power is supplied.
[4] Serial Ports
This PC features two serial RS232 ports with 9-pin D-Sub connectors on the back panel. The left COM port (COM1) can also be configured as RS422 and RS485 in the BIOS setup.
Pin 9 of the D-Sub COM-Port is a multi-functional signal. Based on the Jumper JP2 configuration on the mainboard, it can be configured as Ring Indicator (RI) or external power supply with a voltage level of either 5 V or 12 V. Each COM port can be configured separately. The maximum current is 500 mA per connector.
[5] TPM Function
This product features Firmware-TPM function (fTPM) v2.0. Besides this, it is prepared for a hardware TPM chip which can be fitted by factory on request if required.
