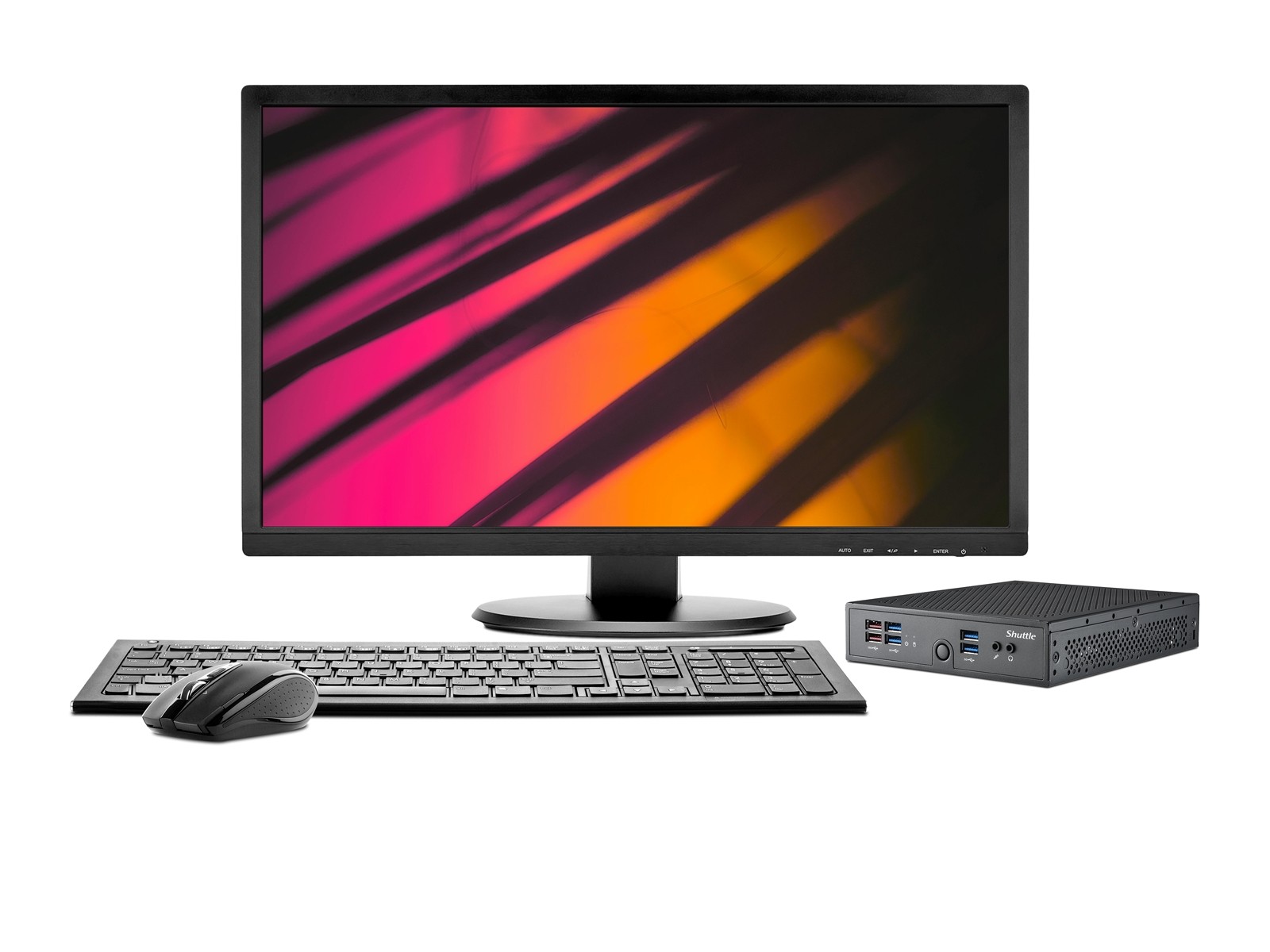

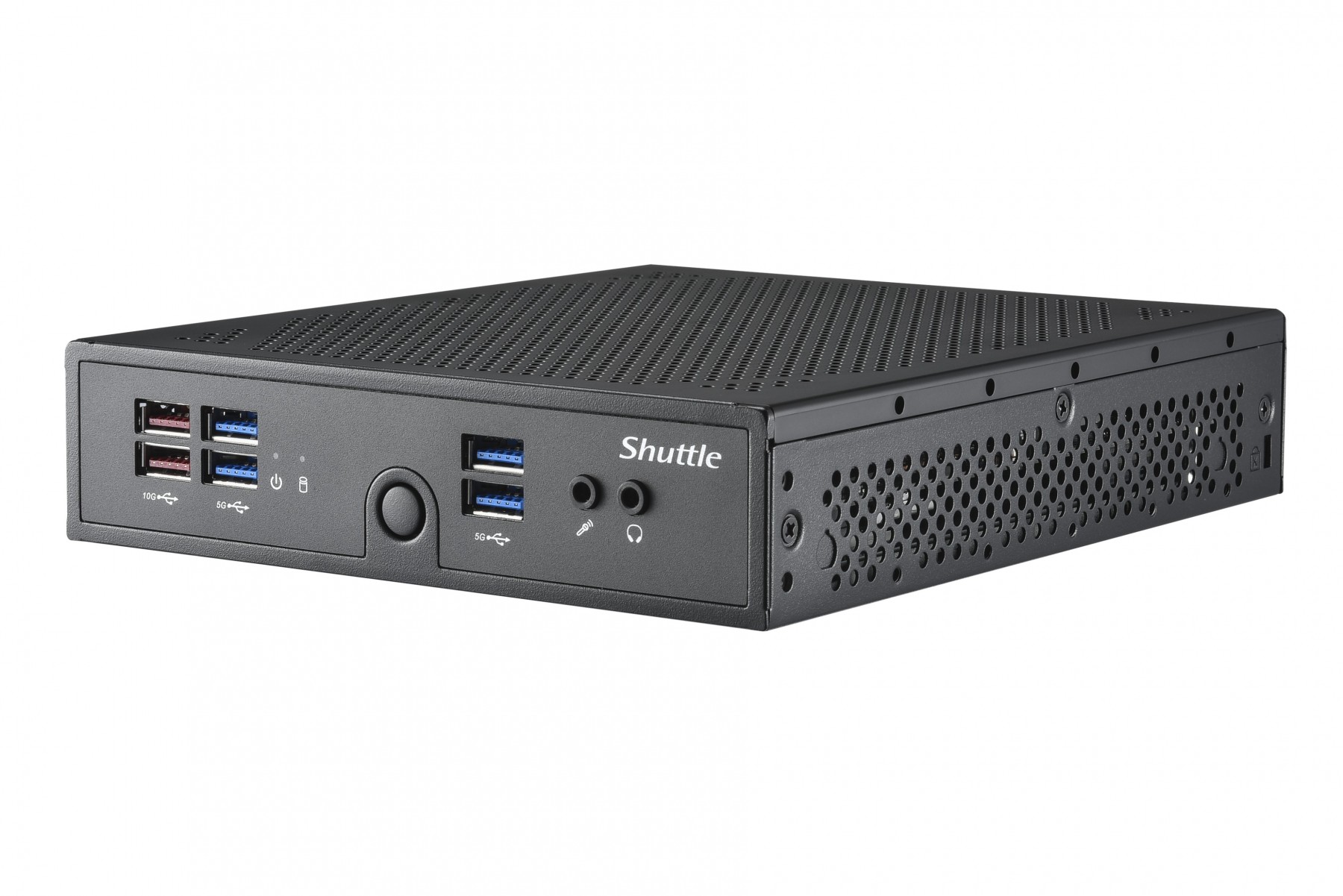

Shuttle Slim PC DS5000B - PC sans ventilateur de 1,3 litre au design industriel avec processeur ULV intégré

• Fanless and Silent
  Passive cooling, no fan noise at all
  Perfect to be used in noise-sensitive environments
  Fanless, dust-free and thus virtually maintenance-free
• 24/7 Nonstop Operation
  This device is approved for 24/7 permanent operation.
  Requirements:
  - Free circulation of air amongst the PC must be guaranteed.
  - Ventilation holes must stay clear.
  - If a hard disk is installed, this must also be approved for permanent operation by its manufacturer
• Chassis
  Slim-PC with black steel chassis
  Without cooling fan, passive cooling only

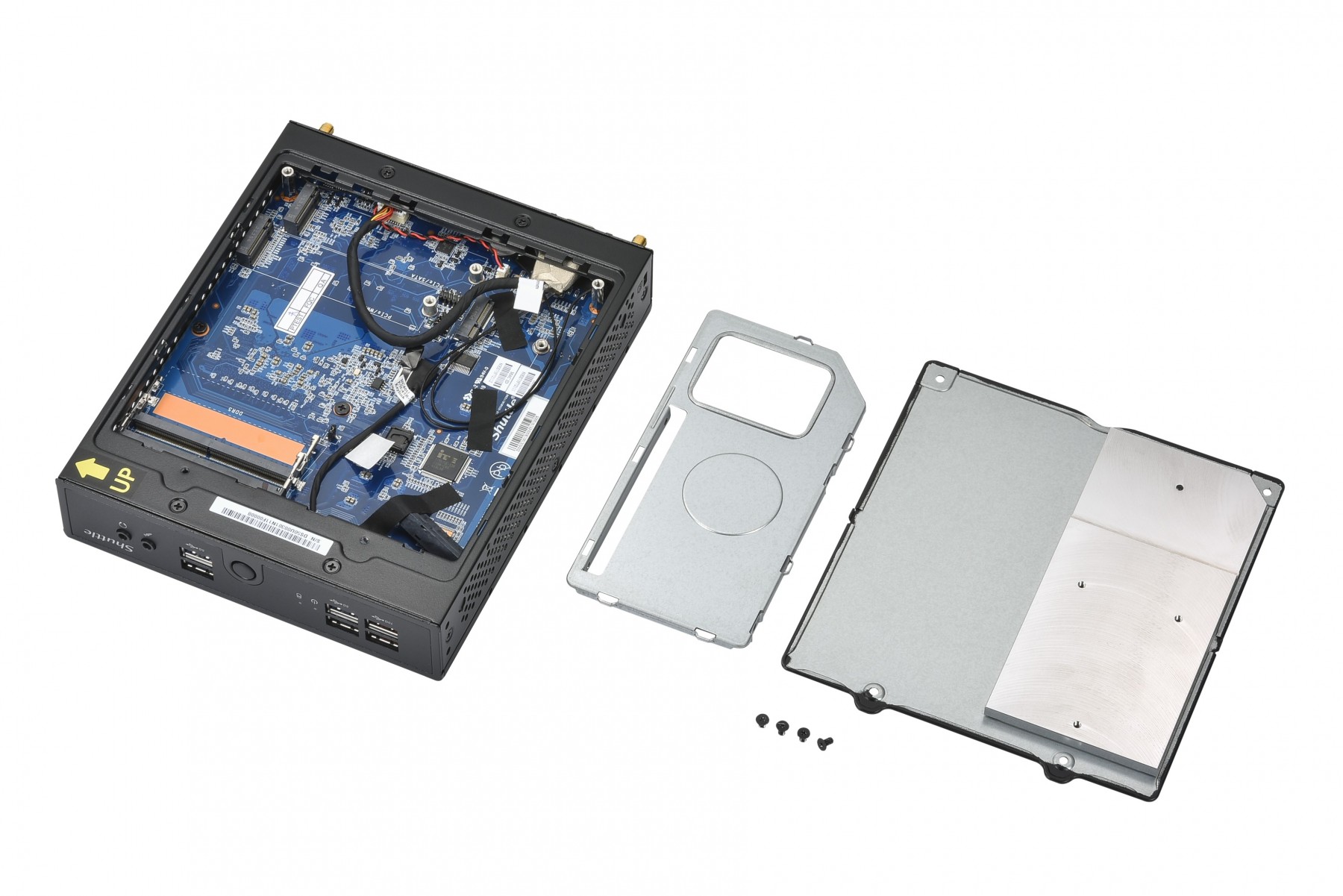

  The bay for memory modules, 2.5" drive and M.2 cards can easily be accessed
  by removing the bottom chassis cover.
  Dimensions: 200 x 165 x 39.5 mm (LWH) = 1.3 litres
  Weight: 1.6 kg net and 2.3 kg gross
  Two holes for Kensington Lock and numerous
  threaded holes (M3) at both sides of the chassis
• Operating Position
  1) Vertical: Usual operating position with the supplied feet (DisplayPort output facing up).
  2) VESA-mounted: The device can also be mounted behind an appropriate monitor using the supplied VESA mount kit.
• Operating System
  This barebone system comes without operating system.
  It is compatible with Windows 10/11 (64-bit) and Linux (64-bit).
• Processor
  Model: Intel Celeron 7305
  Code name: Alder Lake-U (12th generation Intel Core)
  Performance-cores (P-Cores): 1 core (1 thread), clock rate: 1.1 GHz
  Efficient-cores (E-Cores): 4 cores (4 threads), clock rate: 0.9 GHz
  Smart-Cache (L3): 8 MB
  Base Power (PL1 TDP): max. 15 W
  Maximum Tjunction Temperature: 100 °C
  System-on-a-chip architecture (SoC) with integrated memory and graphics controller
  BGA1700 package - directly soldered onto the mainboard
  Lithography: Intel 7 process (10 nm Enhanced SuperFin)
• Integrated Graphics
  Intel UHD Graphics
  GPU clock frequency: max. 1100 MHz
  Execution Units (EUs): 48
  Supports up to three independent screens:
  1) DisplayPort 1.4 supports Ultra HD @ 60 Hz
  2) HDMI 2.0b supports Ultra HD @ 60 Hz
  3) D-Sub/VGA supports analog displays
• Mainboard / BIOS
  Proprietary Mainboard for the Shuttle DS50U series
  Supports resume after power failure [2]
  Supports Wake on LAN (WOL)
  Supports Power on by RTC Alarm
  Supports boot from M.2 SSD cards und USB devices
  AMI BIOS in 32 MByte EEPROM with SPI interface
  Supports hardware monitoring and Watchdog function
  Supports Unified Extensible Firmware Interface (UEFI)
  Supports Firmware-TPM (fTPM) Version 2.0
• Power Adapter
  External 90 W power adapter (fanless)
  Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
  Output: 19 V DC, max. 4.74 A, max. 90 W
  DC cable length: ca. 170 cm
  AC cable length: ca. 170 cm (3-pin Micky MM C6 and Schuko earthed safety plug)
• DC Input connector
  DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
  The DC-input of the computer supports an external
  power source with either 12V±5% or 19V±5%.
• Memory support
  2x SO-DIMM slot with 262 pins
  Supports DDR5-4800 (PC5-38400) SDRAM at 1.1 V
  Supports memory modules with higher frequency rating
  Supports Dual Channel mode
  Supports a maximum of 32 GB per DIMM,
  maximum total size: 64 GB
  Supports two unbuffered DIMM modules (no ECC or registered)
  Two thermal pads for the RAM modules are included
• 2.5" Drive Bay with SATA connector
  Supports one Serial ATA hard disk
  or one SATA SSD drive in 6.35 cm / 2.5" format
  Device height: max. 9.5 mm
  Supports Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
  Supports Unified Extensible Firmware Interface (UEFI)
  Note: no Serial ATA cable is required.
• Two M.2-2280 Slots for SSD cards
  This product features two M.2-2280 Key-M slots
  - it supports M.2 cards with a width of 22 mm and a length of 80 mm (type 2280)
  - one M.2 SSD card with PCIe/NVMe interface is supported
  - the second M.2 SSD card must have SATA interface
  - the second slot can also be used for the optional WWN04 kit to support a 4G/5G wireless network card
  The following configurations are supported:

  M.2 Slot	Inferfaces	Config 1	Config 2	Config 3
  Slot 1	PCIe Gen4 x4 SATA 3.0	M.2 SSD card (SATA)	M.2 SSD card (PCIe/NVMe)	M.2 SSD card (SATA)
  Slot 2	PCIe Gen4 x4 USB 3.2 Gen2 *)	M.2 SSD card (PCIe/NVMe)	optional WWN04 kit	optional WWN04 kit

  *) the USB 3.2 interface can only be used with the Shuttle Accessory WWN04
  Two thermal pads for the M.2 SSDs are included (size: 70 x 20 mm).
• M.2 slot for WLAN cards
  Slot: M.2-2230 Type E
  Interfaces: PCI-Express Gen. 3.0 X1 und USB 2.0
  Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
  Two antenna cable are pre-installed.
  A WLAN expansion card in M.2-2230 format and two WLAN antennas are required for the WLAN function.
  Optional Shuttle accessory: WLN-M1
• Audio
  Audio Realtek® ALC888S High-Definition Audio
  Two analog audio connectors (3.5 mm) at the front panel:
  1) 2 channel line out (headphones)
  2) microphone input
  Digital multi-channel audio output: via HDMI and DisplayPort
• Dual LAN (2.5G + 1G)
  Dual network with two RJ45 ports
  Used network chips:
  1) left: Intel i219 Ethernet Controller supports 1.000 / 100 / 10 Mbps operation
  2) right: Intel i226 Ethernet Controller supports 2.500 / 1.000 / 100 Mbps operation
  Supports WAKE ON LAN (WOL)
  Supports network boot by Preboot eXecution Environment (PXE)

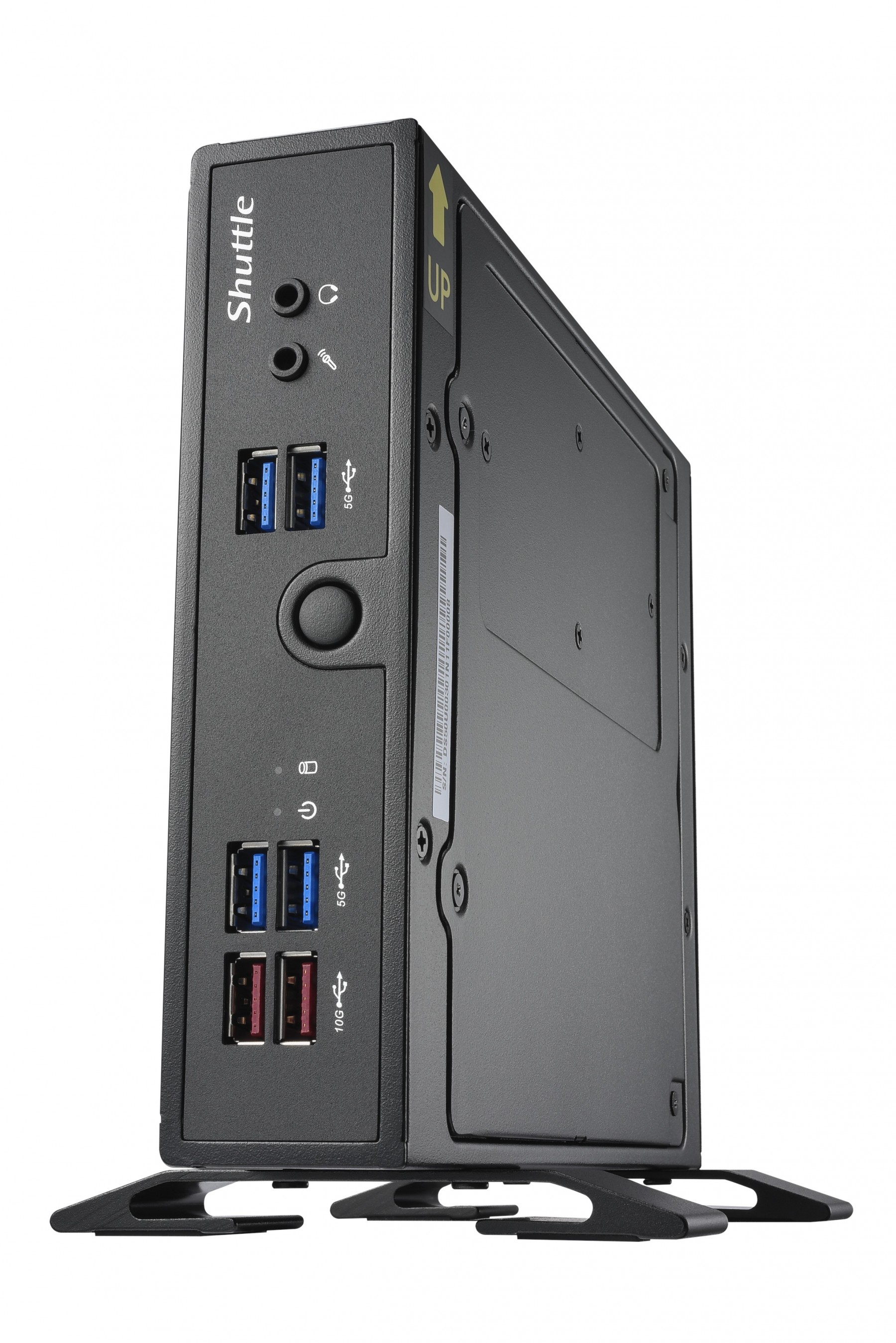

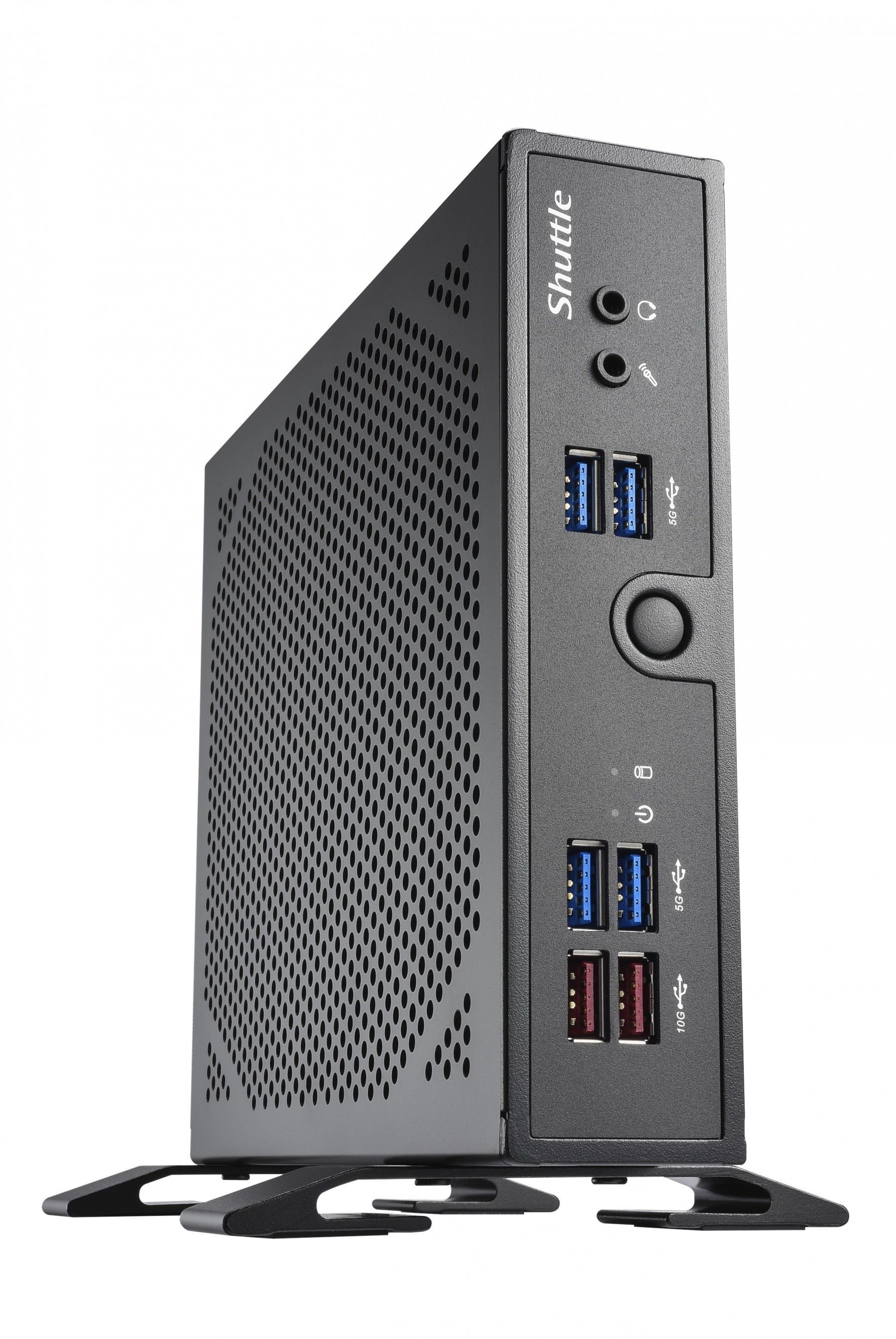

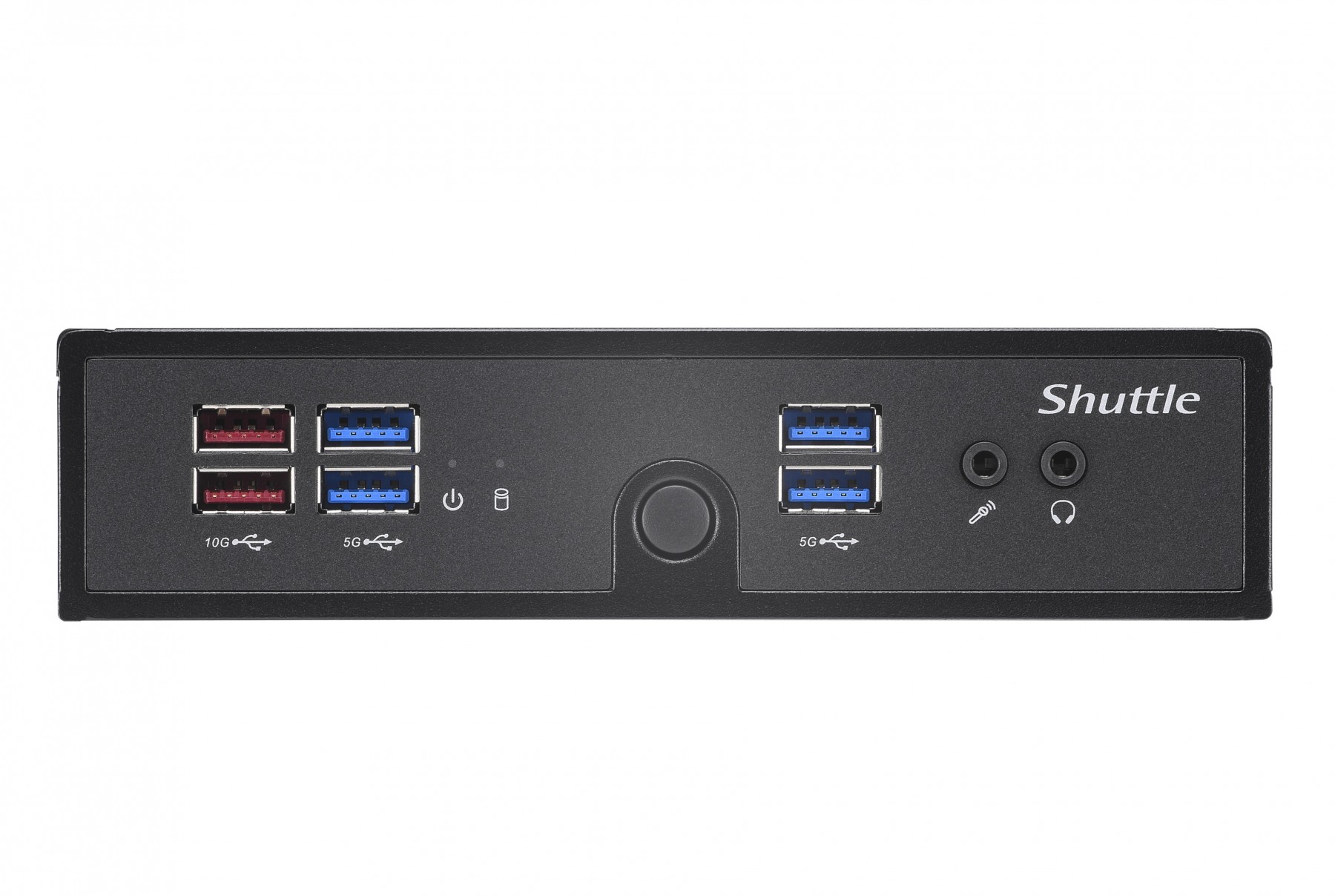

• Front Panel connectors/buttons
  4x USB 3.2 Gen 1 (max. 5 Gbps, blue)
  2x USB 3.2 Gen 2 (max. 10 Gbps, red)
  Microphone input
  Audio Line-out (headphones)
  Power button
  Power LED (blue)
  HDD LED (yellow)

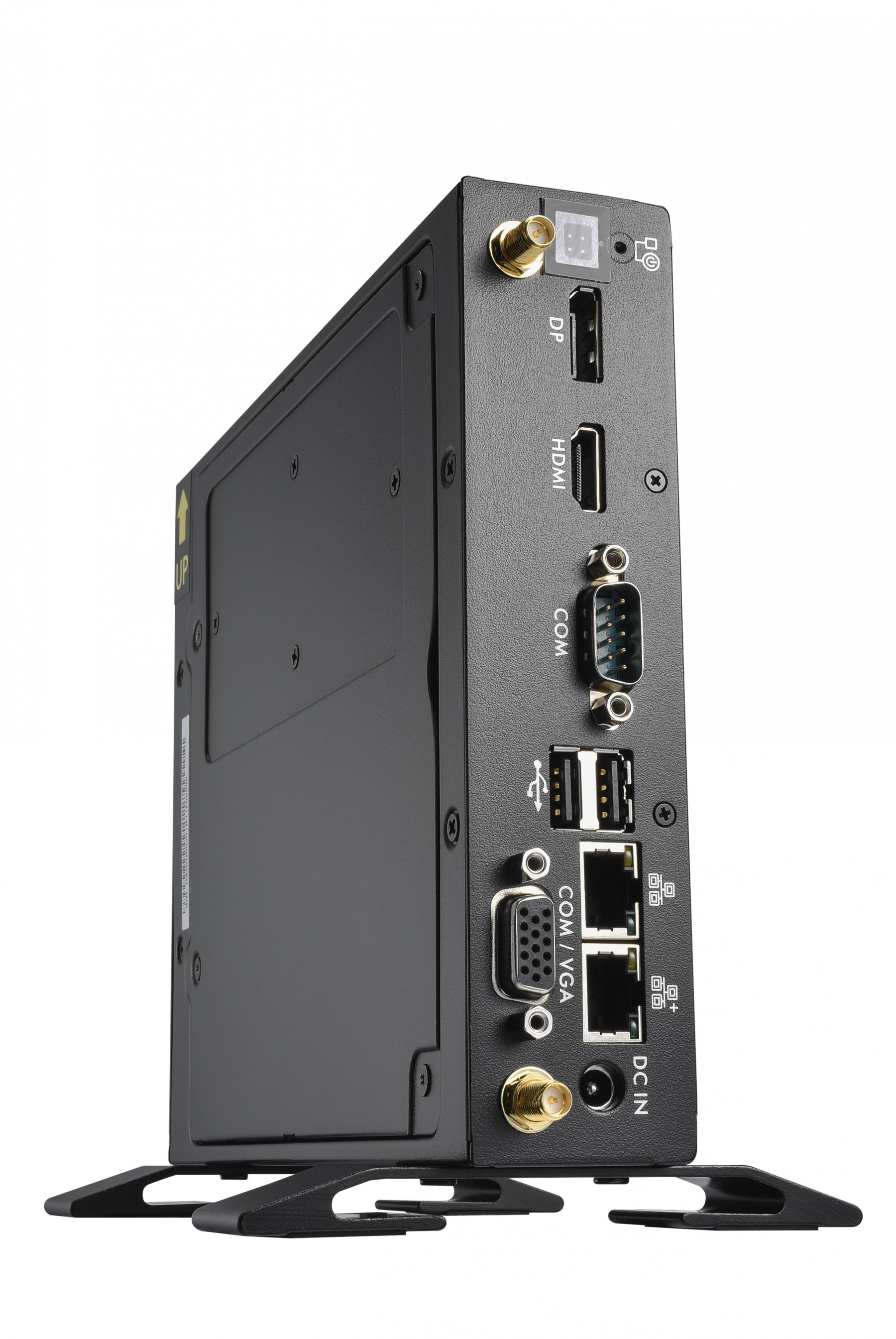

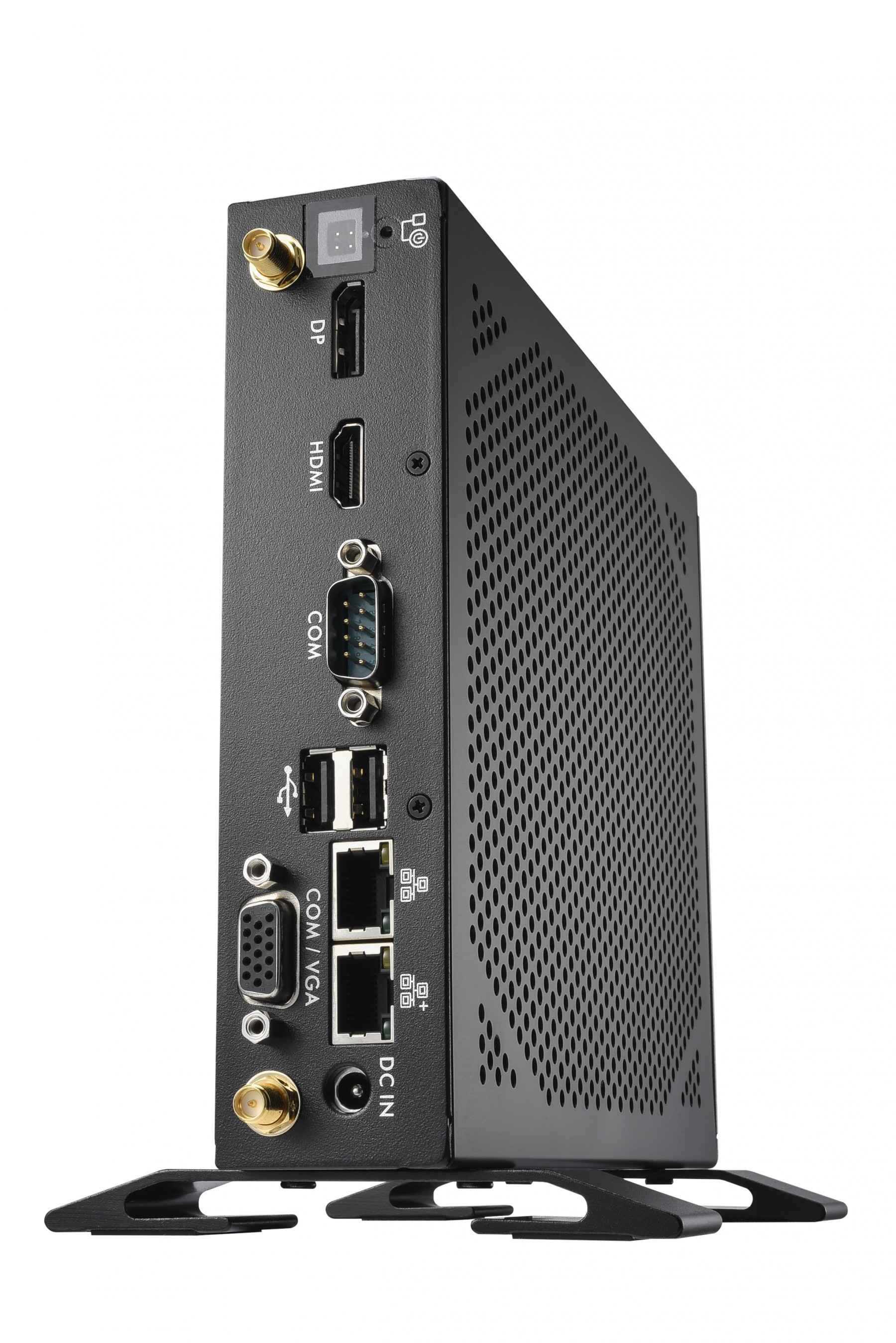

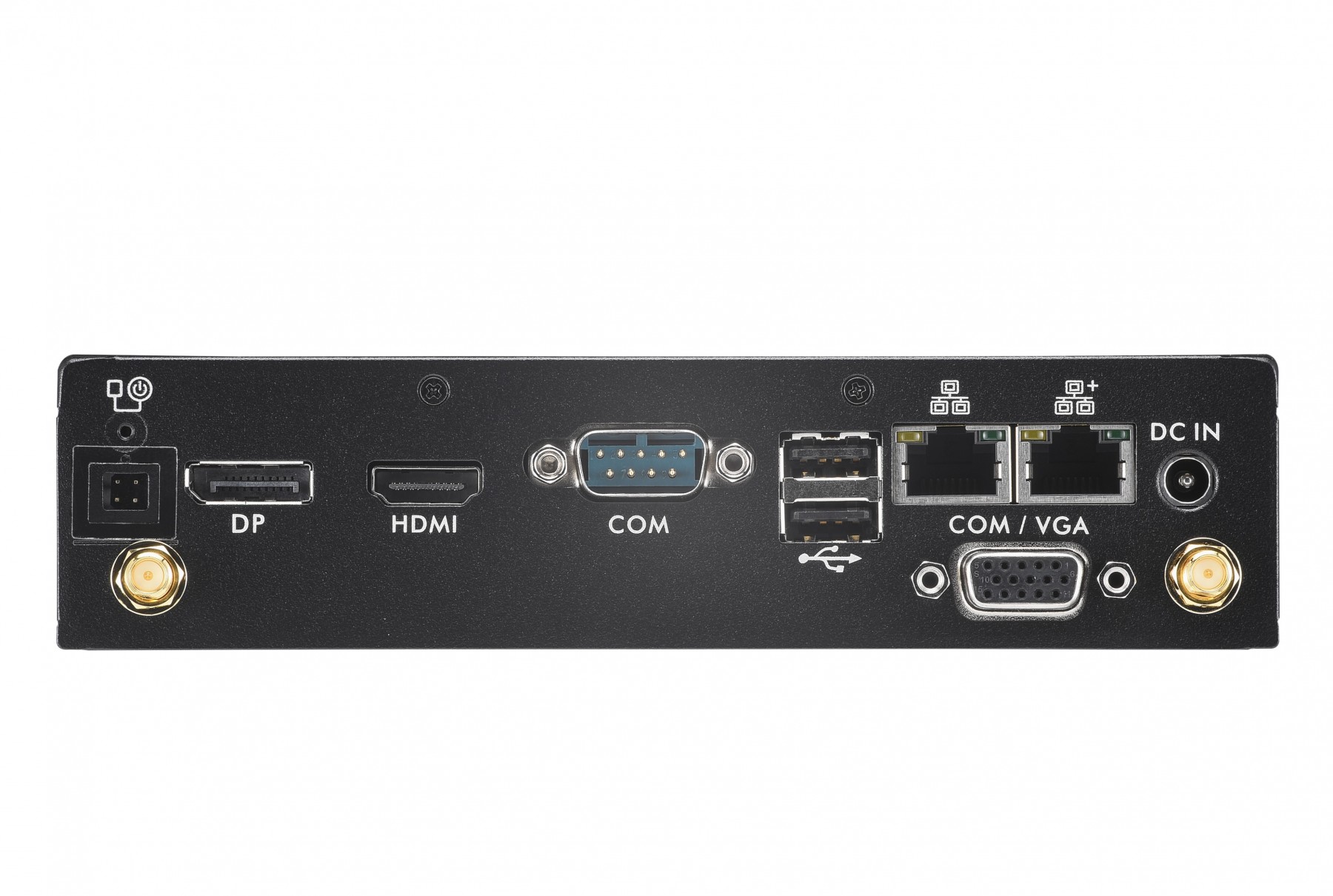

• Back Panel connectors
  DisplayPort 1.4 [3]
  HDMI 2.0b
  D-Sub/VGA
  2x USB 2.0 (black)
  2x Intel RJ45 LAN (left: 1 Gbps and right: 2.5 Gbps)
  Serial COM port (5V / 12V, switchable to RS232 / RS422 / RS485) [1]
  DC-input connector for external power adapter
  4-pin connector (2.54 mm pitch) for power button, Clear CMOS and 5 V DC [4]
  2x connector for external WLAN antennas
• Always-On Jumper
  By removing Jumper JP1 (please refer to the quick user guide),
  the system will start unconditionally once power is applied. [2]
• Scope of Delivery
  Multi-language user guide
  Two metal feet with four screws M3 x 7 mm
  VESA mount for 75/100mm standard (two metal brackets)
  Four screws M3 x 7 mm (screws together VESA mount and PC)
  Four screws M4 x 10 mm (to fix the VESA mount to the external surface)
  Two screws M3 x 5 mm to mount a 2.5" storage in the bay
  Two screws M3 x 5 mm to mount M.2 cards
  4x Thermal Pad for cooling of optional components:
  - 2x for M.2 SSD cards (ca. 70 x 20 x 4 mm)
  - 2x for RAM modules (ca. 50 x 15 x 2 mm and 60 x 20 x 1 mm)
  Driver DVD for Windows
  External 90W power adapter with power cord (with protective-earth contacts)
• Optional Accessories
  - PCP11: adapter cable for the second COM port (replaces the VGA port)
  - CXP01: adapter cable for external power button
  - WLN-M1: WLAN module (supports WLAN/Bluetooth) with two external antennas and cables
  - PRM01: 2U rack mount front plate for two Shuttle XPC slim
  - DIR01: mounting kit for 35 mm DIN-Rail
  - WWN04: 4G/5G kit with antennas - enables the use of an optional 4G/5G card in M.2 format and a nano SIM card
• Environmental Specifications
  Operating temperature range: 0~40 °C [5]
  Relative humidity, non-condensing: 10~90 %
• Conformity & Certifications
  EMI: CE, FCC, BSMI, RCM, VCCI
  Safety: CB, BSMI, cTUVus
  Other: RoHS, Energy Star, ErP
  This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  (1) 2014/30/EU relating to electromagnetic compatibility (EMC)
  (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD)
  (3) 2009/125/EC relating to eco design requirements for energy-related products (ErP)

Footnote:

[1] Jumper for COM port configuration
Pin 9 of the COM-Port is a multi-functional signal. Based on the Jumper JP2 configuration on the mainboard, it can be configured as Ring Indicator (RI) or external power supply with a voltage level of either 5 V or 12 V. Each COM port can be configured separately. The operating mode of COM 1 can be set to RS232, RS422 or RS485 in the BIOS.
The second COM port (COM 2) supports RS232 mode only, and in the standard SKU of this product it is only available as an onboard connector on the mainboard. An appropriate adapter (e.g. the optional accessory PCP11) is required in order to provide this port as D-Sub connector at the back panel. In this case the VGA port cannot be used.

[2] Power on after power fail:
The BIOS setup provides a "Power-On after Power Fail" function that can be found under "Power Management Configuration". This function determines the PC's behaviour after power failure. As a matter of the nature of this function, it may fail after short power failures. This is why this product also comes with a hardware-based solution. By removing Jumper J9 (please refer to the quick user guide), the system will start unconditionally once power is applied.

[3] How to convert DisplayPort into HDMI/DVI
The DisplayPort output can be converted to HDMI or DVI by an additional, passive adapter cable. For example:
DELOCK 82590: 1 m, DisplayPort (male, 20p) to HDMI-A (male, 19p)
DELOCK 82435: 5 m, DisplayPort (male, 20p) to DVI-D (male, 24p)
The integrated graphics automatically detects the connected display and puts out the appropriate electric signal - either through DisplayPort (without an adapter) or HDMI/DVI (with an adapter).
However, a monitor with a DisplayPort connector cannot be connected to the HDMI port with a simple, passive adapter.

[4] Four-pin header at the back panel
This header allows for connecting an external power button.
It also provides 5 V DC voltage for external devices and the Clear CMOS function. Optional accessory: the adapter cable CXP01.

[5] Caution: For ambient temperatures higher than 35 °C we strongly recommend to use an SSD instead of an HDD
