FORM FACTOR Shuttle 5L Form factor
PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W
CHIPSET Intel H610 Express chipset
MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB)
DDR5 5600 MHz

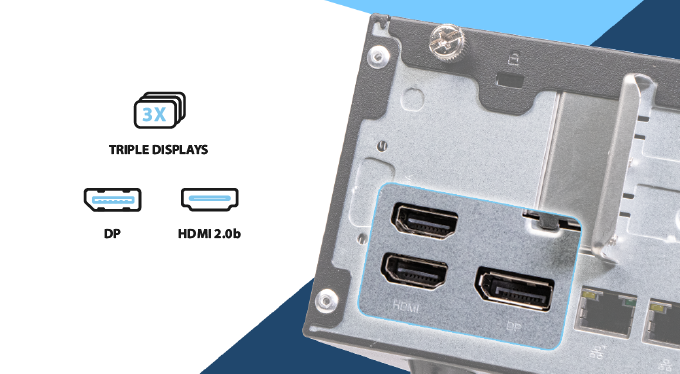

VIDEO OUTPUT (2)HDMI 2.0b + (1)DisplayPort
Support triple independent display
AUDIO Realtek ALC888S High Definition Audio
ETHERNET (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
Supports 10/100/1000 Mb/Sec.
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) Raiser card slot
(1) 4 Pin Fan connector
(1) SATA connector

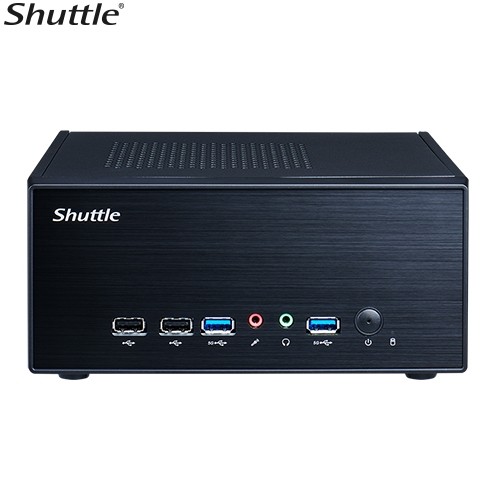

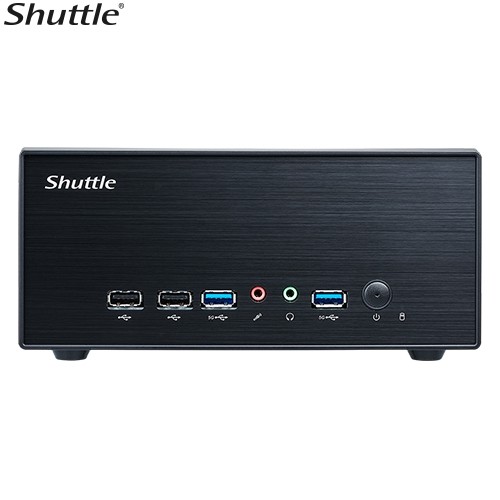

FRONT PANEL (2) USB 2.0 ports
(2) USB 3.2 Gen 1 ports
(1) Microphone-In
(1) Line-Out
(1) Power button
(1) Power LED
(1) HDD LED

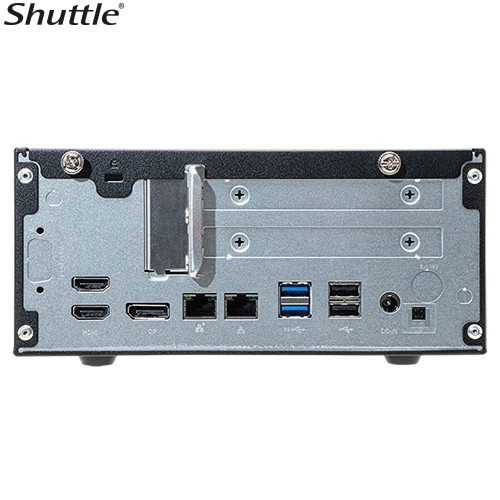

BACK PANEL (2) RJ45 LAN port
(2) HDMI
(2) USB 2.0 ports
(2) USB 3.2 Gen 1 ports
(1) Displayport
(2) Antenna Hole
(1) DC in
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 250*200*95mm
Dimension drawing
POWER Input:100- 240V AC
Output: 19.5V/9.23A
180W Adapter
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
1* Power cord
1*180W adapter
1*Screw pack
1*VESA bracket
1*VESA screw pack
" Optional " WLN-M ,WWN03,
EXPANSION SLOT (1) M.2 2280 M key slot (NVMe+SATA)
(1) M.2 2280 M key slot (SATA only)
(1) M.2 2230 E key slot (PCIe Gen 3x1,USB 2.0,CNVi)
(1) PCI-E X16 Slot
(1) PCI-E X1 Slot
OS SUPPORT Windows 11 64 bit O.S
Linux
NET WEIGHT 2.98 Kg
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI ,UKCA, RCM , VCCI
OPERATING TEMPERATURE 0℃~50℃
